DIY Mobile Table Saw Workbench (Step by Step with Pictures)

About the author, Lukas — Thu, 04 Jun 2026 14:00:00 +0000

AllFlavor Workshop

DIY Mobile Table Saw Workbench (Step by Step with Pictures)

A mobile table saw workbench like this can make a big difference in a smaller workshop or garage. That was exactly why I built mine. I wanted something compact enough to fit the space, but still practical enough to support the saw properly, add storage, and make everyday work around the table saw easier.

This build is designed around the DeWalt 7491, but with small adjustments it can fit other table saws too. What makes it really useful is the modular design. The movable base, the frame, the storage, and the top are all built separately, so parts can be removed, replaced, or upgraded later if needed.

The structure is made from Baltic birch plywood, while the tabletop is MDF so it stays smooth, flat, and easy to replace once it wears out. The top sits flush with the saw, there is space for a vacuum and extra tools, and the workbench also includes an extendable folding outfeed table for extra support when needed.

The full size is 110 × 100 × 93 cm (43.3″ × 39.4″ × 36.6″), including the casters, so it still fits well in a smaller shop while giving you much more than just a saw stand.

If you want to see more workshop builds and table saw ideas like this, have a look at my woodworking plans page or check out Best Table Saw Jigs for Your Workshop.

Video: Watch the Build

If you want to see how the workbench comes together, watch the video below. It shows the overall build, the main parts, and how the modular setup works in practice.

And if you enjoy projects like this, feel free to subscribe to my YouTube channel for more woodworking jigs, workshop builds, and table saw projects.

DIY Mobile Table Saw Workbench 1: Base Frame
DIY Mobile Table Saw Workbench 2: Upper Cabinet Level
DIY Mobile Table Saw Workbench 3: Tabletop and Outfeed Table
DIY Mobile Table Saw Workbench – Addon: Tabletop T-tracks

Downloadable Table Saw Workbench Plans
Materials and Tools
Why Build a Mobile Table Saw Workbench?
Let’s Start Building!
Step 1: Build the Base Frame
Step 2: Build the Upper Cabinet Level
Step 3: Build the Tabletop and Outfeed Table
Step 4: Final Assembly and Finishing Touches
Wrap-Up
Frequently Asked Questions

*Safety is your responsibility. Make sure you know what you’re doing and take all necessary safety precautions while working with power tools. Safety comes first!

Table Saw Workbench Plans

Plans for this mobile table saw workbench are coming soon. I am currently working on them, and once they are ready, I will add them here.

The plans will include the key dimensions, main parts, materials, and the overall build layout to make the project easier to follow and build.

Materials Needed

For this build, I used Baltic birch plywood for the main body, a thicker MDF top, and sturdy locking casters to make the workbench mobile but stable. I’ll list all the materials and tools I used below so you can adjust the build to your own workshop and planer if needed.

Some of the links below may be affiliate links. If you buy through them, I may earn a small commission at no extra cost to you.

Wood

Baltic Birch Plywood
MDF

Hardware

Caster Wheels – https://amzn.to/3Od2Qki

Other Materials

Varnish – https://amzn.to/3TOoOO3
Wood Glue – https://amzn.to/3RDDWLi
Silicon Brush – https://amzn.to/3NPlgaq
Sanding Discs – https://amzn.to/4aGaY6r
Sandpaper Sheets – https://amzn.to/41OMx2p
Protective Gloves – https://amzn.to/3TPCVT7
Dust Rspirator – https://amzn.to/3H3hKWi
Respirator Cartridge – https://amzn.to/48GCBKJ
Eye Protection – https://amzn.to/3S9tD3q

Tools

Table Saw – https://amzn.to/47mWiGf
Orbital Sander – https://amzn.to/48G9cjL
Cordless Hand Drill – https://amzn.to/3HqLEnH
Table Saw Blade – https://amzn.to/48maocv
Grr-Ripper Push Block – https://amzn.to/3vjQSP7
Narex Chisels – https://amzn.to/3tHNJrT
Wolfcraft L-Angle – https://amzn.to/4aGaT2D
Spring Clamps – https://amzn.to/41Nuh9D
F-Clamps – https://amzn.to/48ArzY1
Bessey Parallel Clamps – https://amzn.to/3TNpa7p
Piher Quick Clamps – https://amzn.to/48rmFMU
WolfCraft Quick Clamps – https://amzn.to/48jGxkZ
T-Track Clamps – https://amzn.to/3tEKaCW
Bench Cookies – https://amzn.to/48iPHhn
Drill Bit Set – https://amzn.to/48Kaaf7
Forstner Bit Set – https://amzn.to/3Hd1aDb

📌 Save THIS PIN to your Board on Pinterest!

DIY Mobile Table Saw Workbench — compact, modular, and built for a smaller workshop.

Why Build a Mobile Table Saw Workbench?

A mobile table saw workbench makes a lot of sense if you work in a smaller workshop or garage and want to get more out of the space you have. Instead of having just a saw stand, you get one compact setup that gives you support for the saw, extra storage, more working surface, and the flexibility to move it when needed.

That is what I wanted from this build. I did not want a huge fixed station that would take over the whole shop, but I also did not want to keep working with the table saw as a standalone tool without proper support around it. This workbench sits somewhere in between — compact enough to fit a smaller space, but still practical enough to make daily work easier.

A few of the main benefits are:

Mobility – you can move the whole workbench around the shop when needed
Compact footprint – it fits a smaller workshop or garage much better than a large fixed station
Flush support surface – the top sits level with the table saw, which helps when handling longer or wider pieces
Extra storage – there is room for larger tools, smaller accessories, and even a vacuum
Modular design – parts are built separately, so they can be removed, replaced, or upgraded later
Extendable outfeed support – the folding outfeed table gives you extra support only when you need it
Replaceable top – the MDF top is smooth and easy to swap out once it gets worn

For me, that combination is what makes this build worth it. It is not just a stand for the saw — it becomes a more complete workstation that helps you work better, stay more organized, and get more use out of the table saw in a smaller shop.

Let’s Start Building!

The idea behind this build is to make a compact but practical mobile table saw workbench that does more than just hold the saw. It combines a strong base frame, tool storage, a flush tabletop, and extra support through the folding outfeed section, all in one setup that still fits a smaller workshop.

The build is made in separate modular parts, which makes the whole process easier and also gives you more flexibility later on. The movable base carries the structure, the saw sits flush with the top, the shelves and boxes add storage, and the MDF top can be replaced when needed. That modular approach is one of the biggest strengths of this workbench.

How to Make a Mobile Table Saw Workbench

Step 1: Build the Base Frame

The first step is building the base frame, which is the main structure the whole workbench sits on. This part carries the weight of the table saw, the storage, the top, and everything else, so it needs to be strong, square, and well assembled. The finished base frame measures 110 × 100 × 60 cm (43.3″ × 39.4″ × 23.6″).

I built this part from Baltic birch plywood, cutting all the pieces to size first and then sanding and cleaning them a bit before assembly. The main goal here is to build three supporting frames and then connect them together with the larger deck pieces to form one solid rectangular base. I used glue and screws for the assembly, and once the frame was together, I cleaned up the joints with sandpaper and a chisel where needed.

This step is really about getting the structure right. Take your time and make sure the frames are square and the full base ends up as a clean rectangle. A quick check of the diagonal measurements helps a lot here. Once the frame is assembled, I add the heavy-duty locking casters to support the weight and make the whole workbench mobile. After that, I add the top made from two plywood boards, which creates the platform where the table saw will sit. You can also add varnish here if you want a bit more protection.

This base frame is one of the most important parts of the whole build. If it is solid, square, and stable, the rest of the workbench comes together much more easily.

TIP: Check the diagonals before fully locking everything in place. It is one of the easiest ways to make sure the base frame is truly square.

Step 2: Build the Upper Cabinet Level

The second step is building the upper cabinet section, which brings the workbench up to the same level as the table saw and adds a lot of the storage and functionality around it. This part sits on top of the base frame and supports the upper work surface, while also creating space for shelves, tool storage, and access around the saw.

I made this section from Baltic birch plywood, cutting all the cabinet parts to size first and then assembling them with glue and screws. Some of the cabinets include dadoes for shelves, which helps with both strength and alignment. One important thing here is to make sure all cabinets end up at the same height, because they need to sit flush and support the upper workbench surface evenly.

In the back cabinet, I added a cutout for the dust hose and made a removable access door attached with magnets, which makes it much easier to reach in when needed. After that, I screwed all the cabinets to the base frame and checked that they sat properly in line with each other. I also made a few cutouts in the upper cabinet parts so the table saw fence can move freely and so there is access around the riving knife release handle.

TIP: Before fixing the cabinets in place, double-check that they are all at the same height and that the fence and handle cutouts give you enough room for smooth movement.

Step 3: Build the Tabletop and Outfeed Table

The next step is building the tabletop and the folding outfeed table, which turn the workbench into a much more usable table saw station. This is the part that creates the main support surface around the saw, helps with handling larger workpieces, and makes the whole setup feel like one continuous workstation.

For the top, I used a combination of plywood underneath and MDF on top. I like this approach because the plywood gives the structure support, while the MDF creates a smooth, flat, replaceable work surface. I first cut all the pieces to size, attached the plywood sections to the middle cabinet layer with screws, and then temporarily fixed the MDF tops in place with clamps before screwing them from below. That makes it easier to align everything properly and keep the separate top sections level with each other.

Once the main top was in place, I installed the table saw and adjusted its height so it sits flush with the surrounding workbench surface, or even just a tiny bit higher. I used a few plywood support pieces underneath the saw to fine-tune that position. It is also important here to check that the fence still slides freely after the saw is set in place.

At the back, I added the collapsible outfeed table, which gives extra support for longer boards when needed. Just like the main top, the outfeed section should sit level with the rest of the workbench so the material can pass smoothly across it.

TIP: Take your time with leveling here. Even small height differences between the saw, the main top, and the outfeed table can affect how smoothly material moves across the workbench.

Step 4: Final Assembly and Finishing Touches

The last step is about bringing the whole mobile table saw workbench together and adding the final details that make it practical to use every day. At this point, the main structure is already done, so now it is about fitting the remaining parts properly and making sure the table saw can still be used comfortably inside the workbench.

One of the important finishing details is cutting slots in the tabletop so a table saw sled can slide further without being blocked by the surrounding surface. I also add the needed cutouts in the top for access to things like the riving knife release lever and for removing or adjusting the table saw fence more easily. These small details matter a lot, because they keep the workbench from getting in the way of how the saw is actually used.

After that, I cut and install the shelves and add the side panels, which help finish the build visually and make the storage sections more usable. If you want, this is also a good point to install an electrical outlet extender, which can make the whole setup even more practical in a small workshop.

TIP: Before making the last cutouts in the tabletop, test the saw fence, sled, and main controls once more. It is much easier to adjust openings now than after everything is fully finished.

Wrap Up

This mobile table saw workbench is exactly the kind of shop build I like having around. It does not just hold the saw — it gives you a better work surface, more storage, extra outfeed support, and the flexibility to move the whole setup when needed. In a smaller workshop or garage, that makes a big difference.

What I like most is that it stays compact and modular. The main parts are built separately, the top is replaceable, there is room for storage and dust collection, and the whole workbench can still be adjusted or improved later. So even though it is a fairly simple build in principle, it gives back a lot in daily use.

If you use your table saw often and want a setup that feels more complete without taking over the whole shop, this is definitely a project worth building. It makes the saw easier to use, keeps more things close at hand, and helps the whole workspace feel more organized.

And if you want to see more workshop builds, jigs, and plans like this, have a look at my woodworking plans page.

Frequently Asked Questions

Can I build a mobile table saw workbench for a saw other than the DeWalt 7491?

Yes. This build is designed around the DeWalt 7491, but with small adjustments you can adapt it to fit other table saws as well. The main thing is to measure your saw carefully and make sure the top and support structure match its size and height.

Why use MDF for the top instead of plywood?

I like using MDF for the top because it is smooth, flat, and easy to replace once it gets worn out. The plywood underneath gives the structure strength, while the MDF creates a better work surface around the saw.

Do I really need an outfeed table on a mobile table saw workbench?

You do not absolutely need one, but it makes the setup much more practical. A folding outfeed table gives extra support for longer boards and panels, and because it folds away, it does not take up permanent space in the shop.

What are the main benefits of a mobile table saw workbench?

The biggest benefits are mobility, storage, better support around the saw, and a more complete workstation. Instead of using the saw on its own stand, you get a setup that is easier to work with, better organized, and more useful in a smaller workshop or garage.

Can I add more features to this table saw workbench later?

Yes, that is one of the nice things about this build. Because it is modular, you can upgrade or adjust parts later. You can add things like more drawers, T-tracks in the top, extra storage, or other features that fit the way you work.

This post DIY Mobile Table Saw Workbench (Step by Step with Pictures) first appeared on AllFlavor Workshop and is written by About the author, Lukas

DIY Wood Lathe: How to Make a Drill Lathe

About the author, Lukas — Thu, 21 May 2026 14:00:00 +0000

AllFlavor Workshop

DIY Wood Lathe: How to Make a Drill Lathe

A DIY wood lathe like this is a great way to add another useful setup to the workshop without needing a full-sized machine. This one is a drill-powered lathe that sits on the workbench and is meant mainly for smaller workpieces like knobs, handles, chess pieces, and similar parts. It is compact, removable, and easy to set up only when needed, which is exactly what I like about builds like this.

One of the things I like most here is that the whole build is modular. I am reusing parts and ideas from some of my other jigs, so if you already built those, this project becomes even easier. The lathe uses a standard smaller electric drill as the drive unit, but the design can be adjusted to fit a different drill as well.

The whole setup sits on a base with homemade T-tracks, which let you mount and reposition the drill holder, spindle, tool rest, and tailstock as needed. That makes the lathe much more flexible than a fully fixed setup, and all the main parts are removable, replaceable, and upgradeable.

NOTE: I am currently working on the plans for this build, and once they are ready, they will be available here.

👉 If you want to see more workshop builds and jig ideas like this, have a look at my woodworking plans page.

Video: DIY Wood Lathe / Drill Lathe Build

If you want to see the build in action, watch the video below. It gives you a better look at how the modular drill lathe comes together and how the individual parts work as one compact setup.

And if you enjoy builds like this, feel free to subscribe to my YouTube channel for more woodworking jigs, shop projects, and workshop ideas.

Plans
Materials
What Can You Make with a DIY Wood Lathe?
Let’s Start Building!
Step 1: Build the Base
Step 2: Build the Spindle
Step 3: Build the Drill Holder
Step 4: Build the Tool Rest
Step 5: Add the Tailstock
Wrap-Up
Frequently Asked Questions

*Safety is your responsibility. Make sure you know what you’re doing and take all necessary safety precautions while working with power tools. Safety comes first!

Plans: DIY Wood Lathe

Plans for this DIY wood lathe are coming soon. I am currently working on them, and once they are ready, I will add them here.

The plans will make it easier to build the full setup, including the base, drill holder, spindle, tool rest, and tailstock, with the key dimensions and layout shown clearly.

Materials and Tools

Materials

Baltic birch plywood
MDF
M6 T-nuts
Aluminum L angle
Wood glue – https://amzn.to/48ltKhJ
Steel epoxy – https://amzn.to/422T5L7

Tools

Table saw – https://amzn.to/47mWiGf
Trim router – https://amzn.to/3HbQcOg
Hand drill – https://amzn.to/3HqLEnH
Corded drill – https://amzn.to/3NSA3Bo
Angle grinder – https://amzn.to/48K2klD
Japanese dozuki saw – https://amzn.to/3NS5viZ
Woodturning tools – https://amzn.to/47FWQra
Narex chisels – https://amzn.to/3tHNJrT
One-hand clamps – https://amzn.to/48jGxkZ
F-clamps – https://amzn.to/48ArzY1
T-track clamps – https://amzn.to/3tEKaCW
Spring clamps – https://amzn.to/41Nuh9D
Mini F-clamps – https://amzn.to/3RJwNJK
Machinist square – https://amzn.to/48fT6xw

Bits, Blades, and Accessories

Table saw blade – https://amzn.to/48maocv
Straight router bit – 6 mm – https://amzn.to/4aWQEOl
Drill bits – https://amzn.to/48Kaaf7
Forstner bits – https://amzn.to/3Hd1aDb
Hole saw – https://amzn.to/3S52Rb4
MicroJig GRR-Ripper push block – https://amzn.to/3vjQSP7

Hardware

Block bearings – ID 8 mm – https://amzn.to/3u1UaGu
Bearings – ID 6 mm – https://amzn.to/428lH5D
Coupling nut – https://amzn.to/425o6hn
M6 T-nuts

Affiliate Disclosure
We may earn an affiliate commission when you buy something through our retail links. As an Amazon Associate AllFlavor Workshop earns from qualifying purchases.

📌 Save THIS PIN to your Board on Pinterest!

DIY Wood Lathe — how to make a compact drill lathe for small wood parts.

What Can You Make with a DIY Wood Lathe?

This kind of DIY wood lathe is meant mainly for smaller workpieces, not for large bowls or long spindle work. But for the size it has, it is actually a very useful setup to keep in the workshop. If you like making your own knobs, handles, or small decorative parts, a compact drill lathe like this can go a long way.

That is one of the reasons I like this build. It does not try to replace a full-sized wood lathe. Instead, it gives you a smaller, modular setup that you can bring out when needed, use for more precise small projects, and then store away again.

A few examples of what you can make with it:

Wooden knobs
Small handles
Chess pieces
Decorative turned details
Other small round wood parts for jigs or workshop projects

So even though it is a smaller setup, it still opens up a lot of useful possibilities. And if you already build jigs and workshop tools, this kind of lathe can be a really handy addition for making custom wooden parts yourself.

Let’s Start Building!

The idea behind this build is quite simple: make a small bench-top drill lathe with adjustable parts that can be mounted, moved, and reused as needed. Instead of building one fixed unit, we are making a modular setup with a base, drill holder, spindle, tool rest, and tailstock that all work together through the T-track system.

That gives you a compact lathe for smaller parts, but it also keeps the whole build more flexible. You can remove parts, replace them, improve them later, or adapt the setup to your own drill and workshop needs.

The full lathe measures 65 × 24 × 14.5 cm (25.6 × 9.4 × 5.7 in), so it stays compact enough for a workbench while still giving you enough room for small turning work. The individual parts are also manageable in size:

Base: 65 × 24 × 24 cm (25.6 × 9.4 × 9.4 in)
Drill Holder: 17 × 11 × 12 cm (6.7 × 4.3 × 4.7 in)
Spindle: 13 × 9 × 9.5 cm (5.1 × 3.5 × 3.7 in)
Tool Rest: 7.5 × 10 × 7.5 cm (3 × 3.9 × 3 in)
Tailstock: 12 × 18 × 10.5 cm (4.7 × 7.1 × 4.1 in)

How to Make a DIY Wood Lathe

Step 1: Build the Base

The base is the foundation of the whole DIY wood lathe, so I wanted it to be sturdy, flat, and stable enough to support all the removable parts. It is made from two base pieces laminated together, which gives it more strength and helps prevent warping over time. The final base size is 65 × 24 cm (25.6″ × 9.4″), with a total thickness of about 24 mm / 2.4 cm (0.94″).

I made the base from Baltic birch plywood, then added MDF strips to create the homemade T-track system. First, I cut the base pieces to size and glued them together. After that, I marked out the layout for the tracks, cut the slots using a dado jig, cleaned them up, and glued in the strips that form the tracks. It is important that these strips sit flush with the surface, because the base needs to stay flat while still allowing all the lathe parts to slide, lock, and adjust properly.

This base does a lot of the heavy lifting in the build. It supports the full drill lathe setup, gives you the track system for adjusting the drill holder, spindle, tool rest, and tailstock, and also makes it possible to clamp the whole jig to the workbench when in use. Without a solid base, the rest of the build would not work as well.

Step 2: Build the Spindle

The spindle is the part that supports the rotating workpiece on one side, so it needs to be solid, accurate, and aligned well. I made it from Baltic birch plywood, cutting all the pieces to size first and then assembling them into one compact support unit. The final spindle size is 13 × 9 × 9.5 cm (5.1″ × 3.5″ × 3.7″).

On the top, I mounted two bearings with an 8 mm inner diameter. I spaced the bearings apart from each other to give the spindle better support and help reduce vibrations while turning. That spacing makes a difference, especially on a smaller setup like this, where you want the workpiece to run as smoothly as possible. One important thing here is that the bearing holes need to be level and aligned, otherwise the spindle will not run true.

At the bottom, I added T-nuts so the whole spindle can be mounted onto the base and adjusted through the homemade T-track system. That makes it easy to position the spindle where needed and keeps it consistent with the rest of the modular design.

TIP: Take your time with the bearing alignment. If the bearings are not level with each other, the spindle can introduce wobble and vibrations later.

Step 3: Build the Drill Holder

The drill holder is the part that powers the whole DIY wood lathe, so it needs to hold the drill firmly while also keeping it properly aligned with the spindle. I made it from Baltic birch plywood, cutting all the pieces to size first and then assembling them into a compact holder. The final drill holder size is 17 × 11 × 12 cm (6.7″ × 4.3″ × 4.7″).

The most important part here is the adjustable holding collar that grips the neck of the drill. I made this section adjustable so it can fit drills with different collar or neck sizes, which makes the build more flexible. At the same time, the opening of the drill needs to be perfectly level with the spindle bearing holes, otherwise the setup will not run smoothly.

Once the holder is built, I attached it to the base using T-nuts, which makes it adjustable through the homemade T-track system. After that, I leveled it with the spindle and used a long bolt through the drill and bearings to fine-tune the alignment. That way, I could check that the drill and spindle run together smoothly and make any small adjustments before moving on.

TIP: Before locking the drill holder in place, run a long bolt through the drill and spindle bearings to check alignment. It is one of the easiest ways to spot any small offset early.

Step 4: Build the Tool Rest

Now make the tool rest, which supports your tools while working on the DIY wood lathe. I made mine from Baltic birch plywood and aluminum, but steel works too. The finished size is 24 × 15 × 16 cm (9.4″ × 5.9″ × 6.3″).

Cut all the parts to size, assemble the base and upright, and then attach the rest to the lathe base. The top support should be stable, smooth, and easy to position close to the workpiece for better control.

This is a simple step, but an important one. A solid tool rest makes the lathe much easier and safer to use.

TIP: Keep the tool rest as close to the workpiece as possible for better support and control.

Step 5: Add the Tailstock

The next part is the tailstock, and here I’m reusing the one from my disc sander build. It is made from Baltic birch plywood, it is adjustable, and it mounts to the base so you can move it depending on the length of the workpiece.

The key part here is the bolt running through two bearings, which serves to support the free end of the workpiece while turning. That support is important because it helps keep the piece stable and reduces wobble during use.

Once attached to the base, the tailstock works together with the spindle to hold the workpiece in position. Because it is adjustable, you can set it where needed and lock it in place for different sizes of stock.

TIP: Make sure the tailstock lines up well with the spindle and drill holder. The better the alignment, the smoother the lathe will run.

Wrap-Up

This DIY wood lathe is the kind of workshop build that makes a lot of sense to me. It is compact, modular, easy to store, and still very useful for turning small parts like knobs, handles, and similar pieces. Instead of taking up space like a full-size lathe, you can bring it out when you need it and put it away when you don’t.

Another big benefit is that the build is based on simple, reusable parts. A lot of the components are adjustable, removable, and tied to other jigs I already use in the shop. That makes the whole setup more practical and worth building.

It is not meant to replace a full wood lathe, but for smaller workpieces it does a really nice job. If you enjoy building your own workshop tools, this is definitely a project worth trying.

And if you want to see more jig builds and workshop ideas like this, have a look at my woodworking plans page.

Frequently Asked Questions

What can you make with a DIY wood lathe?

A DIY wood lathe like this is best for small wood parts such as knobs, handles, chess pieces, and other similar round parts. It is not meant for large bowls or long spindle work, but for smaller projects it can be very practical.

Can I use any drill for this homemade wood lathe?

Yes, the build uses a standard smaller electric drill, but the holder can be adjusted to fit different drill collar sizes. The important part is making sure the drill is held firmly and aligned well with the spindle.

Is this DIY drill lathe accurate enough for real woodworking?

For small workpieces, yes. If the spindle, drill holder, and tailstock are aligned properly, the setup works well and gives you enough control for smaller turning tasks. The more accurate you are during the build, the better the result will be.

What wood is this DIY wood lathe made from?

The main structure is made from Baltic birch plywood, which keeps the build stable and strong. Some parts can also include metal elements like aluminum or steel, depending on the part and your preference.

Is this a replacement for a full-size wood lathe?

No, this build is more of a compact bench-top alternative for small parts. It will not replace a full wood lathe for larger projects, but it is a useful option if you want a smaller setup that is easy to store and use when needed.

This post DIY Wood Lathe: How to Make a Drill Lathe first appeared on AllFlavor Workshop and is written by About the author, Lukas

DIY Hexagon Jig for Table Saw (Make Perfect Hexagons Easily)

About the author, Lukas — Thu, 23 Oct 2025 14:00:00 +0000

AllFlavor Workshop

DIY Hexagon Jig for Table Saw (Make Perfect Hexagons Easily)

I’m a big fan of modular jigs—simple add-ons that expand what your tools can do without taking up extra space. This hexagon jig is exactly that. It’s an attachment for my table saw sled that lets me cut perfect, repeatable hexagons with ease.

I built it when I needed a fast, accurate way to make geometric pieces for a few projects. Instead of building a separate jig, I designed this one to bolt right onto my existing sled. When I need it, I mount it; when I’m done, I remove it and store it flat.

The back fence is fixed at 120° to the blade, which keeps every cut precise and consistent. It’s compact, quick to set up, and adds a ton of versatility to the sled system. If you haven’t built your sled yet, start with my guide on How to Make a Table Saw Sled—this jig builds directly on top of it.

Video – How to Make a Hexagon Jig for Table Saw

Here’s a quick video showing how I built this hexagon jig add-on and how it works on the table saw. You’ll see the setup, the angle alignment, and a few test cuts to get those perfect hexagons.

👉 Watch the full build on YouTube and don’t forget to subscribe for more DIY jigs and workshop projects.

Video
Table Saw Hexagon Jig Plans
Materials and Tools
What Is a Hexagon Jig and Why Build One?
Let’s Start Building!
- Step 1: Cut the Blanks for the Hexagon Fence (T-Track)
- Step 2: Cut Dados and Assemble the T-Track Fence
- Step 3: Mount the Fence to the Table Saw Sled
- Step 4: Add the Stop and Hold-Down Clamps
How to Cut a Hexagon with a Hexagon Jig
Wrap-Up: A Simple, Accurate, and Reusable Add-On
FAQs

*Safety is your responsibility. Make sure you know what you’re doing and take all necessary safety precautions while working with power tools. Safety comes first.

Table Saw Hexagon Jig Plans

Download the Table Saw Hexagon Jig Plans here

Download plans here

Materials and Tools

Before you start, make sure you have everything ready. The jig doesn’t require much material — just a few sheet pieces, some hardware, and basic tools you probably already have in your shop.

Wood / Sheet Goods

12 mm Plywood
MDF

Hardware

M6 Bolts and M6 Wingnuts
Wood Screws – link

Core Tools

Table Saw – link
Precision Miter Gauge – link
Trim Router – link
Hand Drill – link
Orbit Sander – link
Table Saw Blade – link

🛠 Check all the tools I use here.

Measuring & Setup

Machinist Square – link
Digital Angle Gauge – link
Speed Square – link

Clamping & Holding

Toggle Clamps – link
Mini Clamps – link
Spring Clamps – link
One-Hand Clamps – link
Push Block – link

Bits, Abrasives & Consumables

Straight Router Bit – link
Drill Bit Set – link
Sanding Discs – link
Sandpaper Sheets – link
Wood Glue – link
Silicon Glue Brush – link
Double-Sided Woodworking Tape – link

💡 Tip: I recommend checking your sled’s fence height before cutting the jig pieces — matching the height keeps everything aligned and makes the cuts cleaner.

Some of the links above are affiliate links. If you buy through them, I may earn a small commission at no extra cost to you.

📌 Pin This for Later
Save this project for later so you can add it to your own modular jig system.

What Is a Hexagon Jig and Why Build One?

A hexagon jig is a simple table saw accessory designed to cut perfect, repeatable hexagons at 120° angles. It ensures all six sides are identical and symmetrical without measuring or guessing each cut. If you often make geometric pieces, cutting boards, or decorative panels, this jig will save you time and improve precision.

Unlike standalone versions, this one mounts directly to your table saw sled, which makes it compact, modular, and easy to remove when not in use. It’s part of a larger sled system I use for many jigs in my shop.

Let's start building!

This jig works on a simple idea — the back fence is set at 120° to the saw blade, allowing you to cut perfect, repeatable hexagons just by rotating the workpiece and making six identical cuts.

It’s built from Baltic birch plywood, which gives the jig strength and stability, and features homemade T-tracks made from MDF. The entire setup attaches directly to your table saw sled with a single bolt and a pair of wing nuts. The height matches the sled fence, so the workpiece glides smoothly through each pass. When you’re done, just loosen the bolts and store it flat — it takes almost no space.

The key here is accuracy. Spend a few minutes setting the fence to a precise 120° using a digital angle gauge or machinist square, and you’ll get clean, consistent results every time.

How To Make a Hexagon Jig for Table Saw

Step 1: Prepare the Wood for the Hexagon Fence

Rip the main fence body from Baltic birch plywood to 450 × 55 × 12 mm. This strip will later receive dados that capture two MDF rails, forming your homemade T-track (for stops, hold-downs, and other accessories). For now, you’re just prepping blanks—no assembly yet.

Using the table saw sled, cut two narrow MDF strips that will become the T-track rails. Keep their widths consistent; it’s fine to leave them slightly oversized for now—we’ll sneak up on the final sliding fit after the dados are cut in the plywood.

💡 Pro tip: Mark a reference edge/face on the plywood body and both MDF rails. Keep those references against the fence for every cut—this preserves parallelism and makes the later dado fit-up far more predictable.

Step 2: Cut Dados and Assemble the T-Track Fence

Next, it’s time to turn the plywood blank into a working T-track fence. Start by using a marking gauge to mark the layout lines for three dados along the plywood strip. These will hold the MDF rails that form the sides of the track.

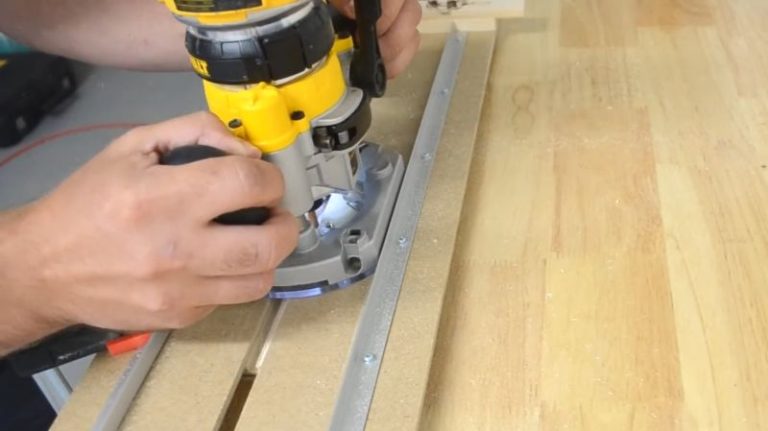

I cut all the dados with my multipurpose router jig — it’s quick, precise, and keeps the cuts perfectly parallel. Once the dados are done, lightly sand the grooves and clean up the ends with a chisel to remove the material the router couldn’t reach.

Test the fit with the MDF strips before gluing. The dado width should match the thickness of your MDF so everything stays flush. When satisfied with the fit, add a thin layer of glue inside the dados and insert the strips. Avoid using too much glue — if it squeezes into the track, it’s a pain to clean later. You can also add a few screws for extra strength if you like.

Drill a 6 mm hole through the center at one end of the track — this will later be used to attach the jig to the table saw sled. On the other end, bevel the edge closest to the blade to help remove sawdust while cutting. Then, at the far end of the fence, mark and cut a 120° angle on the table saw — this is the reference edge that will align with the sled fence.

💡 Tip: Don’t throw away the 120° cutoff piece — you’ll need it later when setting up the jig for your first hexagon cuts.

This is the same DIY T-track system I use in many of my builds — simple to make, strong, and fully compatible across multiple jigs. You can check out my step-by-step guide on How to Make a DIY T-Track for Woodworking if you’d like to add this setup to your own shop.

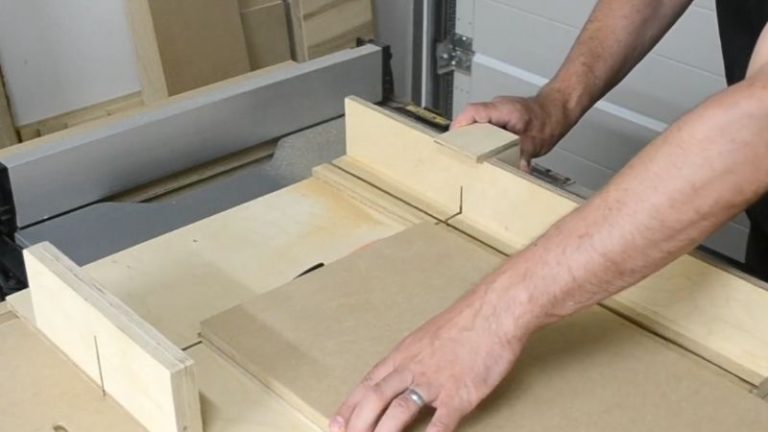

Step 3: Mount the Fence to the Table Saw Sled

With the T-track fence complete, it’s time to mount it onto the table saw sled. Start by aligning the 120° cut edge of the fence with the sled’s fence. This angle needs to be precise, so check that there’s a true 120° between the jig fence and the saw blade using a digital angle gauge.

Once aligned, temporarily fix the fence in place. I use a few plywood cutouts and double-sided tape to hold everything steady while I mark and drill. With the fence secured, extend the existing 6 mm hole through the sled base — this will serve as the mounting point.

Next, flip the sled upside down. Using a chisel, carve a hexagon recess around the drilled hole to fit the bolt head. The recess needs to be deep enough for the bolt head to sit flush or slightly below the sled’s surface. This ensures the sled slides smoothly across the table without obstruction.

After carving, insert the bolt from the bottom, position the fence on top, and secure it using a wing nut. Check the alignment one more time to confirm the 120° setup is still spot-on.

💡 Tip: Take your time with the alignment. Small errors at this stage will multiply across all six cuts when forming the hexagon.

Step 4: Add the Stop and Hold-Down Clamps

With the fence mounted and aligned, it’s time to add the accessories that make the jig truly functional — the stop block and the hold-down clamps. These are mounted directly into the homemade T-track, which allows for quick adjustment and reuse across other jigs in the workshop.

Install the hold-down clamps first. They’ll keep each workpiece firmly in position during cutting and prevent any movement. I’m using shop-made clamps, secured with homemade T-track bolts, standard bolts, and wing nuts — the same system I use across all my jigs.
Next, attach the stop block. Mine is made from plywood and lets me set the workpiece position for repeatable cuts of the same length. Just slide it to the desired spot, tighten it down, and you’re good to go.

Once both accessories are mounted, secure the outer end of the hexagon fence to the table saw’s fence. I use another pair of T-track bolts, a thin plywood strip, and wing nuts to lock it firmly in place. When everything is tightened, the jig sits solid and ready to cut.

💡 Tip: Keeping all your T-tracks the same size means your homemade bolts, clamps, and stops can be reused across different jigs — a huge time saver when switching setups.

How to Cut a Hexagon with a Hexagon Jig

Now that the jig is ready, here’s how to use it to cut clean, even hexagons on your table saw. The process is quick and repeatable once you have everything set.

🔧 Setup

Mount the jig to your table saw sled and secure it with the bolt and wing nut.
Insert the hold-down clamps into the T-track to keep your workpiece firmly in place.
Add the stop block into the same track and set the desired hexagon size. Tighten it down with a wing nut.
Take the 120° cutoff piece you saved earlier and place it between the stop block and your workpiece. This acts as a support wedge, ensuring perfect alignment.

🪚 Cutting the Hexagon

Make the first cut — align the edge of your board with the fence and make a clean pass. This defines your first 120° edge.
Rotate the workpiece to the next side, aligning it against the stop block and the cutoff wedge, and make the next cut.
Repeat the rotation and cutting process until all six sides are cut. The result is a perfectly symmetrical hexagon with equal facets.

⚠️ Safety note: Always use your hold-down clamp when cutting small pieces. Keep your hands well away from the blade and use push blocks whenever possible.

💡 Pro tip: Create a few custom stop blocks sized for different hexagon patterns — one for standard hexagons, others for irregular shapes or unique layouts.

Wrap-Up: A Simple, Accurate, and Reusable Add-On

This hexagon jig is one of those small but powerful add-ons that make workshop life easier. It’s quick to build, mounts in minutes, and when you’re done, it stores flat and out of the way. All its components — the stop blocks, hold-down clamps, and T-track bolts — fit right into my modular system, so they can be reused with other jigs and setups around the shop.

What I like most is its simplicity and reusability. Everything fits together cleanly, and because the alignment is adjustable, hitting those perfect 120° angles is quite achievable even if your setup isn’t 100% precise at first. The more accurate you are during the build, the better — but there’s still room to fine-tune later.

Of course, there are limits — this add-on isn’t meant for very large hexagons, since the size depends on your table saw sled. But for small to mid-sized projects, it’s a compact, reliable jig that produces clean, consistent results every time.

📘 Plans coming soon! I’ll be sharing downloadable plans for this jig along with my other modular table saw add-ons. Until then, you can check out all my current free woodworking plans and start building your own workshop jigs today.

FAQs

What angle do you need to cut a hexagon on the table saw?

A hexagon requires 120° between adjacent faces. On this jig, the back fence is set at 120° to the blade, so you simply rotate the workpiece and make six identical cuts.

Do I need a table saw sled for this hexagon jig?

Yes. This jig is designed as an add-on for a table saw sled. The sled gives you stability, accuracy, and a safer workflow. Build the sled first, then mount the jig on top.

What materials should I use for the jig?

I build the fence from Baltic birch plywood and the tracks from MDF (my homemade T-track system). Hardware is simple: M6 bolt + wing nut for mounting, plus T-track bolts for the stop and hold-downs.

How big of a hexagon can I cut with this jig?

Size is limited by your sled capacity. For very large hexagons, a standalone jig or different approach is better. For small to mid-sized parts, this add-on is ideal.

How do I keep the cuts accurate and repeatable?

Take a few minutes to dial the fence to a true 120° with a digital angle gauge or machinist square. Use the saved 120° cutoff as a wedge against the stop, and clamp the workpiece with hold-downs. Make a light test cut and fine-tune if needed.

Is the system reusable with other jigs?

Yes. I keep all my homemade T-tracks the same size, so T-track bolts, stops, and hold-downs move between jigs—fast setup, less clutter, and consistent results.

This post DIY Hexagon Jig for Table Saw (Make Perfect Hexagons Easily) first appeared on AllFlavor Workshop and is written by About the author, Lukas

DIY Juice Groove Jig: Cut Clean Juice Grooves Every Time

About the author, Lukas — Thu, 09 Oct 2025 07:00:00 +0000

AllFlavor Workshop

DIY Juice Groove Jig: Cut Clean Juice Grooves Every Time

If you’ve ever tried cutting a juice groove freehand, you know how tricky it can be to get it clean and consistent — especially across multiple boards. That’s exactly why I built this DIY Juice Groove Jig.

This jig is designed to make the whole process smooth and repeatable. It’s adjustable, works with a wide range of board sizes (up to 40×69 cm), and clamps down securely to your workbench whenever you need it. I built mine using MDF for the base and Baltic birch plywood for the fences. The tracks are routed directly into the MDF using a 6mm router bit, so there’s no need to buy aluminum t-tracks — though you could definitely go that route too.

What I really like is how easily you can adjust the jig to fit different board sizes — just slide the fences in place, lock them down, and you’re ready to go. You can even tweak the groove offset by adding spacers under your cutting board.

I usually use this jig right after trimming a board to final size and before routing handles or sanding. It’s quick to set up, easy to use, and gives you perfectly clean juice grooves every time.

👉 If you’re working on cutting boards, check out Best Jigs for Making Cutting Boards for more builds like this one. I also now offer premium woodworking plans for selected cutting board jigs and bundles if you want the more complete version of the builds.

How to Make a Juice Groove Jig Video

Want to see how it’s built? Watch the full step-by-step video below. I walk through each part of the process — from making the jig base to cutting a clean juice groove in a cutting board.

I appreciate every YouTube subscriber. It’s free and easy to subscribe to — just Click Here To Subscribe. Thank you!

Watch the Build (Video)
Downloadable Plans
Tools and Materials
Step-by-Step Build Guide
1. Step 1: Cut the Base to Size
2. Step 2: Add T-Tracks to the Base
3. Step 3: Build the Adjustable Side Fences
4. Assembling the Juice Groove Jig
How to Use the Jig
Wrap-Up
FAQ
Jigs I Used for The Project

*Safety is your responsibility. Make sure you know what you’re doing and take all necessary safety precautions while working with power tools. Safety comes first!

Juice Groove Jig Plans

If you want the more complete version of the plans, I also now offer premium woodworking plans for selected cutting board jigs and bundles. This juice groove jig is one of the jigs I reach for regularly when I want clean, repeatable grooves and a more finished-looking cutting board.

Download the free Juice Groove Jig Plans here

Download free plans here

Tools and Materials

Here’s what I used to build the juice groove jig. Many of these are standard tools you likely already have in the shop. I’ve added affiliate links for your convenience — they help support the site at no cost to you.

Tools

Table Saw – Link
Router – Link
Hand Drill – Link
Orbit Sander – Link
Japanese Dozuki Saw – Link
Drill Bit Set – Link
Grr-Ripper Push Block – Link
Table Saw Blade – Link
Narex Chisels – Link
F-Clamps – Link
T-Track Clamps – Link
One Hand Clamps – Link
Spring Clamps – Link
Speed Square – Link

Tools

Juice Groove Router Bit – Link
Router Bit Dia 6mm – Link

Consumables & Other

Wood Glue – Link
Painters Tape – Link
Sanding Discs – Link
[MDF + Baltic Birch Plywood]
T-Track Bolts

🛠 Check out all the tools I use here

As an Amazon Associate, I may earn from qualifying purchases at no extra cost to you.

PIN THIS TO PINTEREST

📌 Save THIS PIN to your Board on Pinterest!

Let's start building!

The jig is built from two main parts — a flat MDF base with routed T-slots and four adjustable side fences made from Baltic birch plywood. I went with MDF because it’s straight and easy to cut clean slots into. The homemade T-tracks keep the build budget-friendly and work with standard shop clamps, which is a nice bonus.

All the components are laid out with cutting boards in mind — both in size and in how the jig adjusts. Before routing the groove, the board is held in place between the fences, locked down with clamps, and if needed, small spacers can be added underneath to fine-tune the groove offset.

It’s a straightforward build, and once assembled, the jig handles a variety of board sizes with ease. Let’s walk through it step by step.

How to Make a Juice Groove Jig

Step 1: Cut the Base to Size

To start, I’m cutting the base of the juice groove jig to its final dimensions — 51.5 × 70.5 cm. I’m using 18mm thick MDF, which offers plenty of rigidity and stays nice and flat over time. You can cut it on a table saw, like I did, or use a circular saw with a guide if that’s what you have on hand. A straight and solid base is key, since all the other parts of the jig will be mounted to it.

Step 2: Add T-Tracks to the Base

Once the base is ready, it’s time to create the homemade T-track system. I start by marking a matrix of tracks — two slots from one side and two from the adjacent side. These will later hold the adjustable fences in place.

To make clean, straight slots, I use my router dado jig. After routing, I clean up the edges of each slot with a chisel. Before moving forward, I test my homemade T-track bolts in the slots to make sure they slide freely.

Next, I cut MDF strips to form the walls of the T-tracks and glue them into the slots. I use just enough glue to hold them — too much and cleanup becomes a hassle. I also fix each strip in place with screws, making sure they sit flush with the surface. Finally, I sand everything down lightly to remove any bumps and make sure the surface stays flat.

Step 3: Build the Adjustable Side Fences

Next up are the adjustable side fences — you’ll need four in total, and they’re made from Baltic birch plywood. Each fence is built from a wider base strip and a few narrower strips stacked on top. The base not only gives the fence structure, but it also creates a small offset between the cutting board and the fence, which helps when routing juice grooves.

I cut all the strips to size on my table saw, then glue the narrower strips on top of the base to form each fence. The height is up to you — it depends on the typical thickness of your cutting boards. Once everything is glued up, clean any glue squeeze-out to make sure the surface stays nice and flat.

Step 4: Assemble the Juice Groove Jig

Now that the fences are ready, it’s time to assemble the jig. To hold cutting boards securely, the fences need to be perpendicular to each other — this way, you can easily copy the board’s shape and route a precise groove around it.

One fence is permanently fixed to one of the shorter sides of the base. I attach it with wood glue and screws.
The opposite shorter fence gets a routed slot, so I can attach it with T-track bolts and adjust it as needed.
The two longer side fences don’t have any slots. I attach them with T-track clamps, depending on the size of the cutting board I’m working on.

This setup gives you a fully adjustable jig that works for boards of various sizes. You can tighten everything in place once the board is inside, and then you’re ready to route.

Find This Blog Post Useful?

Join my newsletter to receive the latest news, tutorials, and project plans sent directly to your inbox!

How to Use the Juice Groove Jig

Once your cutting board is trimmed to final size (and before sanding or adding rubber feet), it’s time to cut the juice groove.

Here’s how I use the jig:

Place the board against the fixed fence on the base.
Adjust the remaining three fences so they fit snugly around the cutting board.
Secure the fences using either T-track bolts or clamps.
Clamp the whole jig to your workbench or table so nothing moves during routing.
Grab your handheld router fitted with a round nose bit (aka juice groove bit).
Start in one corner and work your way around the board, following the inner fence outline.

This setup gives you consistent results and helps avoid mistakes like slipping or uneven grooves.

Juice Groove Routing Tips

Tip	Why it Matters
1. Cut slowly and evenly	Keeps the groove smooth without chatter marks
2. Make multiple shallow passes	Reduces tear-out and prevents burning
3. Clear chips between passes	Prevents clogging, keeps the router bit cool, and avoids chips getting under the base plate — so your juice groove stays clean and at a consistent depth
4. Move in a clockwise direction	Safer and helps the bit pull into the fence for a cleaner cut

Wrap-Up

I’ve used this juice groove jig on every cutting board I’ve made in the past year — and it just works. It saves a ton of time, gives me consistent results, and I don’t have to worry about wobbly setups or freehand mistakes. Once it’s clamped down, I know the cut will be clean.

One of the things I really appreciate is how versatile it is. You can use it with different board sizes and thicknesses, and it works great alongside other jigs I use in the process. If you’re building boards regularly, this one’s right up there with the best woodworking jigs for cutting boards.

If you haven’t built one yet, I’d definitely recommend it. It’s one of those jigs that earns its place on the wall because you keep reaching for it. If you want the more complete version of the build, you can also browse my woodworking plans page along with the rest of my cutting board jig collection.

FAQ – Juice Groove Jig

What router bit do I need to cut a juice groove?

You’ll need a round nose router bit — often labeled as a juice groove bit. I recommend a 6mm or 8mm diameter depending on the groove style you’re after.

Can I use this jig for different cutting board sizes?

Yes, the jig is fully adjustable. The fences can be moved to fit a variety of board sizes and thicknesses.

How do I avoid burning the edges while routing?

Use multiple light passes rather than one deep cut, move at a consistent pace, and make sure to clear the chips between each pass. This prevents heat buildup and keeps the bit clean.

Can I use shop-bought T-tracks instead of making my own?

Absolutely. While I built mine with MDF and homemade bolts to keep costs down, you can swap in aluminum T-tracks and hardware if preferred.

Jigs I Used for This Project

This post DIY Juice Groove Jig: Cut Clean Juice Grooves Every Time first appeared on AllFlavor Workshop and is written by About the author, Lukas

How to Make a Jointer Sled (Perfect for Boards & Tapering)

About the author, Lukas — Thu, 02 Oct 2025 07:00:00 +0000

AllFlavor Workshop

How to Make a Jointer Sled (Perfect for Boards & Tapering)

I built this jointer sled because I needed something reliable for prepping rough stock, trimming live edges, and cleaning up cutting boards. As a bonus, it also works great for cutting clean, repeatable tapers.

The sled is made from 6 mm plywood and 16 mm MDF, glued and screwed into a strong, flat platform. It rides along the table saw fence instead of the miter slot, which gives it much more capacity for longer and wider pieces.

I also integrated a dovetail track system so I can quickly clamp workpieces, add a fence for taper cuts, or use stops and hold-downs wherever I need them. The layout gives a lot of flexibility while keeping everything safe and controlled.

I use this jig all the time when working on cutting boards — especially when squaring up glued panels after flattening.

👉 If you’re building cutting boards, this pairs perfectly with my Best Jigs for Making Cutting Boards guide. I also now offer premium woodworking plans for selected cutting board jigs and bundles if you want the more complete version of the builds.

Watch the Build

Here’s the full video walkthrough of how I built the jointer sled. It shows every step from cutting the base to routing the dovetail tracks and using it for tapering cuts. If you’re building your own, I highly recommend watching it before you start.

I appreciate every YouTube subscriber. It’s free and easy to subscribe to — just Click Here To Subscribe. Thank you!

Watch the Build
Table Saw Jointer Sled Plans
Materials and Tools
Let’s Start Building (Step-by-Step Guide)
1. Step 1: Making the Jointer Sled Base
2. Step 2: Cutting the Dovetail Tracks
3. Step 3: Final Touches and Setup
How to Use the Jointer Sled
Jointer Sled vs Other Edge-Jointing Methods
Wrap-Up / Final Thoughts
FAQs
Jigs I Used to Build This Project

*Safety is your responsibility. Make sure you know what you’re doing and take all necessary safety precautions while working with power tools. Safety comes first!

Table Saw Jointer Sled Plans

If you want the more complete version of the plans, I also now offer premium woodworking plans for selected cutting board jigs and bundles. This jointer sled is one of the first jigs I reach for when prepping stock, straightening edges, or squaring up cutting boards after flattening.

Download the free Jointer Sled Plans here

Download free plans here

Materials and Tools

Here are the materials and tools you’ll need to build this DIY jointer sled.

Wood

6mm plywood (base layer)
16mm MDF (top layer)

Hardware

Wood glue
Screws
MicroJig Dovetail hardware (clamps, bolts, etc.)

Dovetail Track System – Tools Microjig:

Matchfit Clamping System – Link
Dovetail Clamp Bit – Link
Dovetail Clamps – Link
Dovetail Hardware (Bolts) – Link

🛠 Check out all the tools I use here

(Affiliate links included — thank you for your support!)

Tools (affiliate links):

Table Saw – Link
Orbital Sander – Link
Cordless Hand Drill – Link
Table Saw Blade – Link
Trim Router – Link
Folding Shelf Brackets – Link
WolfCraft Quick Clamps – Link
Ryoba Saw – Link
Wood Glue – Link
Sanding Discs – Link
Sandpaper Sheets – Link
Drill Bit Set – Link
Dust Respirator – Link
Respirator Cartridge – Link
Eye Protection – Link

Affiliate Disclaimer:
Some of the links in this post are affiliate links. If you click on a link and make a purchase, I may earn a small commission at no extra cost to you. I only recommend tools and materials I personally use and trust. Thank you for supporting my work!

📌 Save THIS PIN to your Board on Pinterest!

Let's Start Building!

This jointer sled is built from two layers — a 6 mm plywood base and a 16 mm MDF top — glued and screwed together to create a strong and flat platform.

The sled rides along the table saw fence instead of the miter slot, which gives you more support and makes it easier to handle longer and wider boards.

What makes this design especially useful is the dovetail track layout. It allows you to quickly clamp workpieces, add fences for taper cuts, or position stops exactly where you need them.

The build itself is straightforward, but accuracy matters — especially when it comes to alignment and track placement.

Let me walk you through the process step by step.

How to Build a Table Saw Jointer Sled

Step 1: Making the Jointer Sled Base

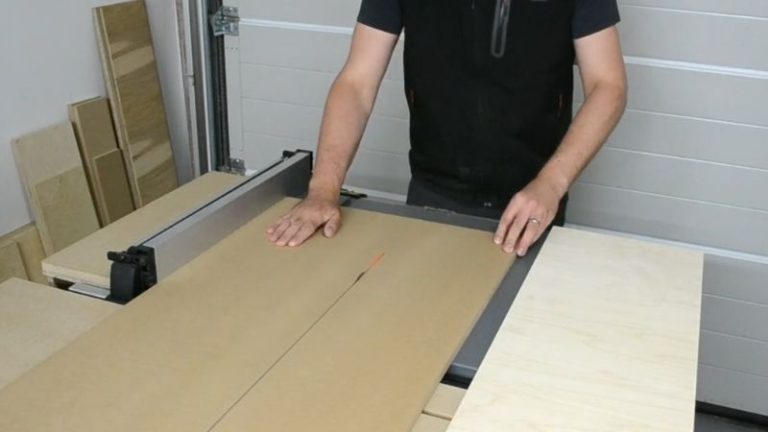

Start by cutting the 6 mm plywood and 16 mm MDF boards to size. My finished sled is 92 cm long and 30 cm wide, which gives me enough support for longer boards while still keeping the sled easy to handle.

Apply wood glue to the plywood, place the MDF on top, and clamp everything together until the glue fully cures. This creates a strong, flat base for the sled.

Once the glue dries, trim the edges clean so both layers are perfectly aligned. Then flip the sled upside down and mark the screw positions. The screws will help hold both layers together, but make sure they do not intersect with the dovetail tracks you’ll cut in the next step.

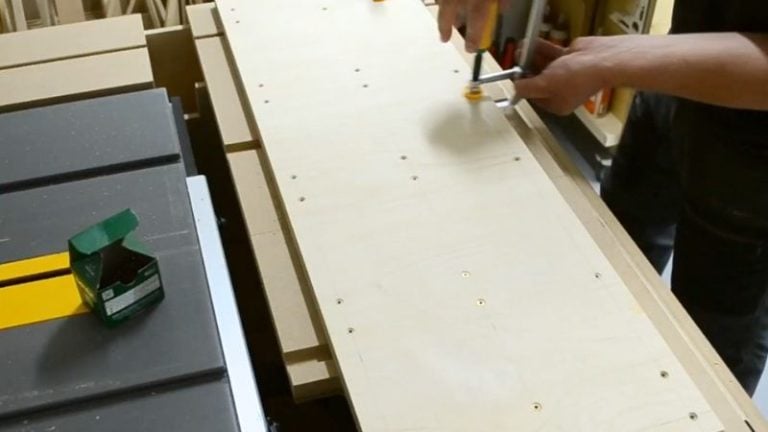

NOTE: Plan the screw locations before drilling. You don’t want a screw in the path of the router bit when cutting the dovetail tracks.

TIP: Make sure the screw heads sit flush with the bottom of the sled so they don’t scratch the table saw surface or affect how the sled slides.

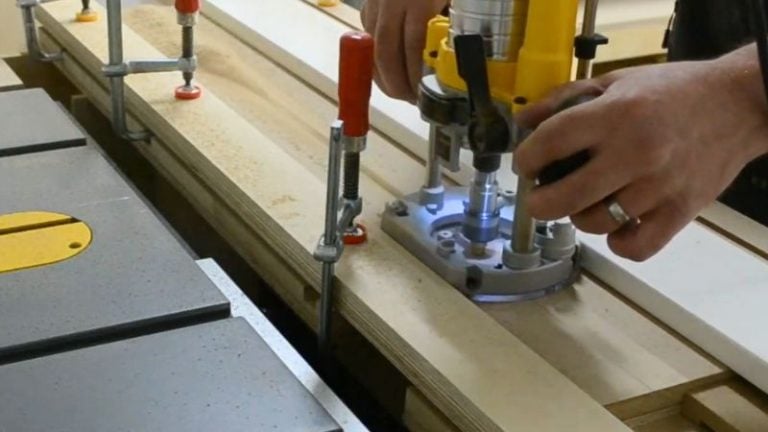

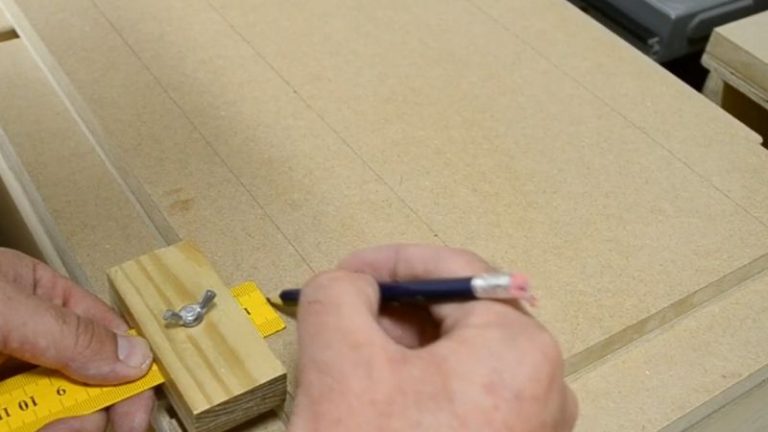

Step 2: Cutting the Dovetail Tracks

Once the base is assembled and cleaned up, flip it back to the top side and mark the layout for the dovetail tracks.

In this design, I used:

3 tracks running the full length of the sled
7 cross tracks to create a flexible clamping grid

This layout gives you a lot of freedom to position clamps, fences, and stops wherever you need them. To cut the tracks, use a ½″ 14° dovetail router bit (Microjig Matchfit). Set the depth carefully and use a straight guide or fence to keep the cuts clean and consistent.

NOTE: For the cross tracks, do not cut all the way through. Stop the groove short on the side that will be closest to the table saw blade.

This is an important safety detail — it prevents the blade from ever contacting the groove during use. Take your time routing the tracks and keep the movement steady to get clean edges and consistent depth.

TIP: Make a test cut on scrap material first to dial in the depth and fit of your dovetail hardware.

Step 3: Final Touches and Setup

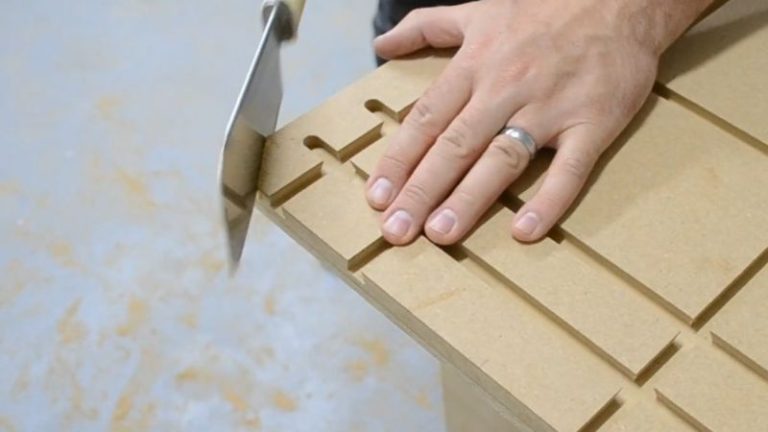

To finish the sled, start by trimming the two corners on the side that runs closest to the blade. This gives you better clearance and helps keep everything smooth and safe during cuts.

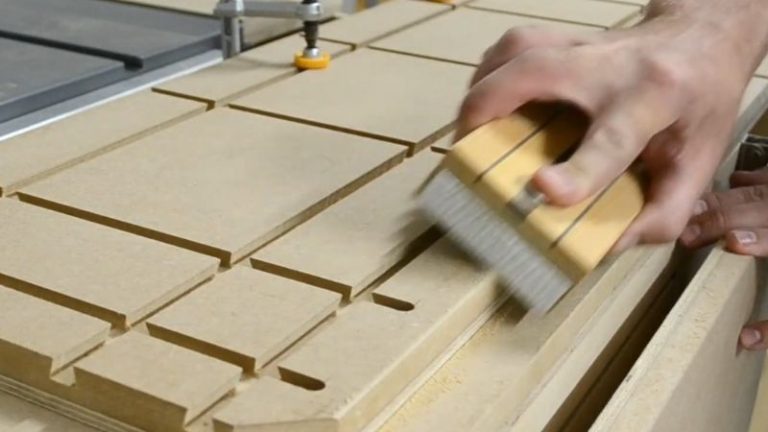

Next, lightly sand the top edges of the sled. I like to break the sharp edges slightly — it makes the sled more comfortable to handle and reduces the chance of splinters. I used my sanding block for this step, which works great for quick cleanup and edge smoothing.

At this point, the sled is ready to use. You can keep it simple, or take it a step further by adding a fence or stop blocks using the dovetail tracks.

I’m using a fence from another jig that clamps directly into the tracks — it’s quick to set up and works really well for taper cuts or repeatable setups.

Find This Blog Post Useful?

Join my newsletter to receive the latest news, tutorials, and project plans sent directly to your inbox!

How to Use the Jointer Sled

This sled is super versatile, and that’s what makes it such a useful jig in the workshop. I use it regularly for prepping boards, cleaning edges, and even cutting tapers. Here are the main ways I use it:

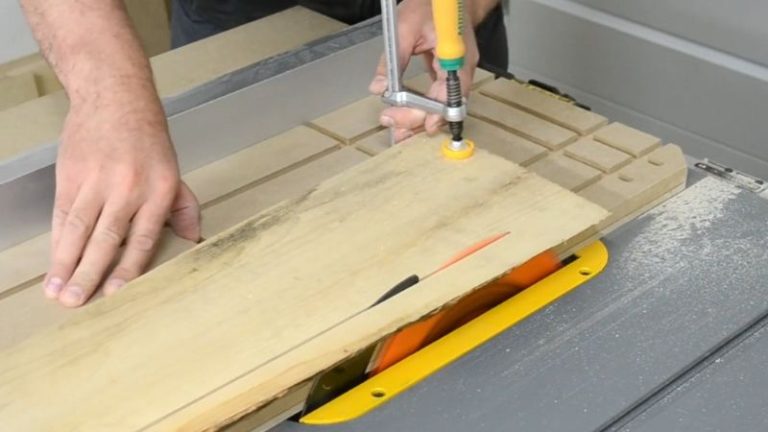

Edge Jointing Rough Stock
If you’re starting with rough, uneven, or live edge boards, this sled is a great way to get that first clean edge. Clamp the board down using the dovetail tracks and make a straight cut along the fence. Now you’ve got a flat edge ready for further milling or glue-ups.
Trimming Cutting Boards to Size
Once I’ve glued up a cutting board, I’ll use the sled to square it up and trim the edges clean. It’s especially helpful when I want both sides perfectly parallel before routing grooves or sanding.
👉 Best Jigs for Making Cutting Boards
Cutting Tapers
Attach a fence or a stop block to the sled and you’ve got a solid tapering jig. Just rotate your workpiece slightly, clamp it down, and make your cut. I’ve used this on table legs and decorative panels — works like a charm.
👉 DIY Table Saw Taper Jig
Precision Work with Large Pieces
Because the sled rides against the fence (instead of the miter slot), it gives you better support and control when working with longer or wider boards. This reduces wobble and helps improve overall accuracy — especially when working with heavier hardwoods.

TIP: Always make sure the workpiece is securely clamped before cutting — any movement will affect accuracy and safety.

NOTE: Take light passes and let the blade do the work. Forcing the cut can lead to rough edges or kickback.

Jointer Sled vs Other Edge-Jointing Methods

Method	Best For	Accuracy	Cost	Flexibility
Jointer Sled	Cutting boards, rough stock, tapering	★★★★★	Low	★★★★★
Jointer Machine	Straight boards, batch work	★★★★★	High	★★★☆☆
Hand Plane	Fine tuning, small adjustments	★★★★☆	Low	★★★☆☆

A jointer sled is one of the most flexible ways to straighten edges in a small workshop, especially for cutting boards and irregular stock.

Wrap-Up

This jointer sled is one of those jigs that quickly becomes part of your everyday workflow. I use it all the time for prepping boards, cleaning up rough or live edges, and squaring things up before moving on to the next steps.

It’s especially useful when making cutting boards — after flattening the surface with a router sled, this is what I use to trim the sides clean and get everything square before routing grooves or sanding.

What I like most about this design is how versatile it is. With the dovetail track system, you can easily add fences, stops, or clamps and adapt it to different tasks. It’s not just a jointer sled — it also works as a tapering jig and a general-purpose cutting platform.

👉 If you’re building cutting boards, this is one of the essential jigs to have. You can check out more builds like this in my Best Jigs for Making Cutting Boards guide, and if you want the more complete version of the builds, you can also browse my woodworking plans page.

FAQ

What is a jointer sled used for?

A jointer sled is used to straighten one edge of a board using a table saw. It helps square rough, uneven, or live-edge stock before running it through additional cuts.

Can a jointer sled be used as a tapering jig?

Yes. By adding a fence or stop block, you can use the sled to cut clean and repeatable tapers. It’s a great way to combine two jigs into one setup.

Does the sled work without a miter slot?

Yes. This design rides along the table saw fence instead of the miter slot, which gives you more flexibility when working with longer or wider boards.

What router bit do I need for the dovetail tracks?

You’ll need a ½-inch 14° dovetail router bit, like the one from Microjig. It’s compatible with Matchfit clamps and other similar dovetail accessories.

Can I use other clamps and accessories, or only Microjig?

You can use any accessories that fit the dovetail profile. While this sled was built around the Matchfit system, it’s not limited to Microjig gear.

Jigs I Used to Build This Project

This post How to Make a Jointer Sled (Perfect for Boards & Tapering) first appeared on AllFlavor Workshop and is written by About the author, Lukas

DIY Sanding Block: How to Build One (With Free Plans)

About the author, Lukas — Thu, 25 Sep 2025 07:00:00 +0000

AllFlavor Workshop

DIY Sanding Block: How to Build One (With Free Plans)

If you sand a lot of small pieces or edges, a good sanding block is one of those tools that just makes life easier. Sure, you can grab any flat scrap of wood and call it done — but I wanted something a bit more refined. Something that not only works great but also looks good in the shop.

So I built my own.

This one’s made from beech, walnut, and Baltic birch plywood — and while it’s just a sanding block at heart, it’s built to last, comfortable to use, and actually feels nice in your hand thanks to the routed finger slots and solid construction. The sandpaper locks in tight between two layers with bolts and nut inserts, and the whole piece has a kind of “cutting board” vibe to it that just makes it more fun to reach for.

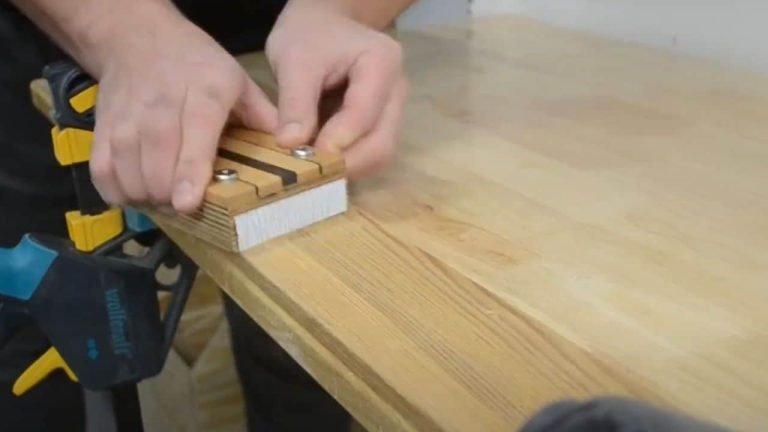

I mostly use it to smooth cutting boards, especially the edges, so if you’re into that too, you might want to check out my Best Woodworking Jigs for Cutting Boards post — this sanding block fits right in with that workflow. I also now offer premium woodworking plans for selected cutting board jigs and bundles if you want the more complete version of the builds.

Watch the Build - DIY Sanding Block Video

Want to see how this sanding block comes together? Here’s the full build video — from cutting the top to routing the finger slots and putting it to use.

Every new YouTube subscriber helps a lot — and it’s free. Click here to subscribe, and thanks for the support!

How to Make a Sanding Block Video
Downloadable Sanding Block Plans
Materials and Tools
Making a Sanding Block (Step-by-Step Guide)
1. Step 1: Making the Top
2. Step 2: Making the Bottom
3. Step 3: Drilling Holes and Inserting Rivet Nuts
4. Step 4: Routing Handles and Finishing the Block
How to Use It
Wrap-Up / Personal Reflection
FAQ
Jigs I used for this project

*Safety is your responsibility. Make sure you know what you’re doing and take all necessary safety precautions while working with power tools. Safety comes first!

Sanding Block Plans

If you want the more complete version of the plans, I also now offer premium woodworking plans for selected cutting board jigs and bundles. This sanding block is one of those small shop builds that keeps paying off — especially when smoothing edges and surfaces on cutting boards.

Download the free Sanding Block Plans here

Download free plans here

Materials and Tools

Here are the materials and tools you’ll need to build this DIY sanding block, and you likely already have most of the materials and tools in your workshop.

As an Amazon Associate, I may earn from qualifying purchases at no extra cost to you.

Wood

Beech (top layer)
Walnut (top layer)
Baltic birch plywood (support and base)

Hardware

M6 bolts
M6 nut inserts

Other Materials

Wood glue
Sandpaper sheets
Wood oil (for finishing)
Wax paper (for clamping)

Tools

Table saw – Link
Router – Link
Drill press – Link
Chamfer router bit – Link
Router flattening bit – Link
Juice groove router bit – Link
Table saw blade – Link
Push block – Link
Parallel clamps – Link
F-clamps – Link
One-hand clamps – Link
Drill bit set – Link
Ratchet tool set – Link
Double-sided woodworking tape – Link

✅ Check all the tools I use here

📌 Save THIS PIN to your Board on Pinterest!

Why Use a Sanding Block Like This?

A sanding block might seem like a simple tool, but the design makes a big difference in how it performs. A solid, well-shaped sanding block helps you keep surfaces flat, apply even pressure, and get much cleaner results compared to sanding by hand.

What I like about this design is that it holds the sandpaper firmly in place and feels comfortable to use, even during longer sanding sessions. That means better control and more consistent results, whether you’re working on small parts or larger surfaces.

Let's start building!

This isn’t just a random offcut with sandpaper stuck to it. I wanted to make a sanding block that actually looks good and works well — something I’d enjoy having in the shop.

The block is made from two parts:

Top piece: laminated beech and walnut, backed by a 6.5mm Baltic birch plywood layer.
Bottom piece: 18.5mm Baltic birch plywood.

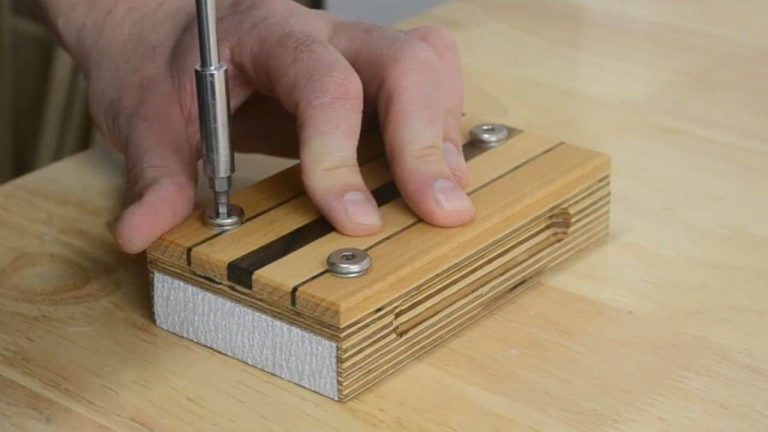

The two pieces are held together with M6 bolts and nut inserts, clamping the sandpaper in between. I also added finger slots on the sides so it’s easier to hold while sanding.

It measures 140mm x 80mm — compact, comfortable, and perfect for smoothing edges or smaller parts. I use it all the time around the shop. Let’s build it step by step.

How to Make a Sanding Block (Step-by-Step)

Step 1: Making the Top

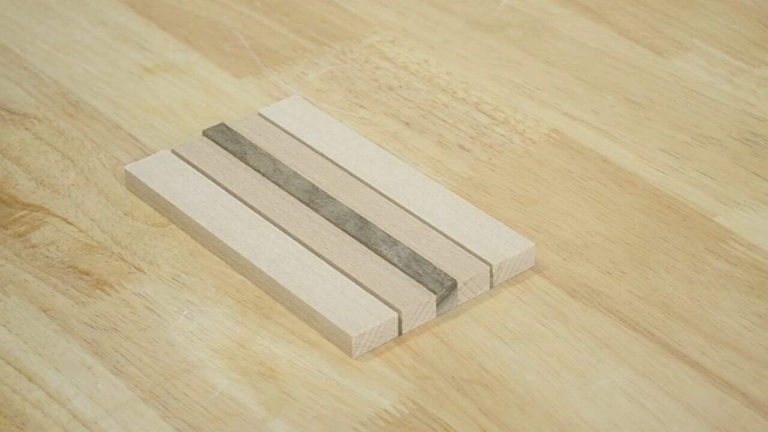

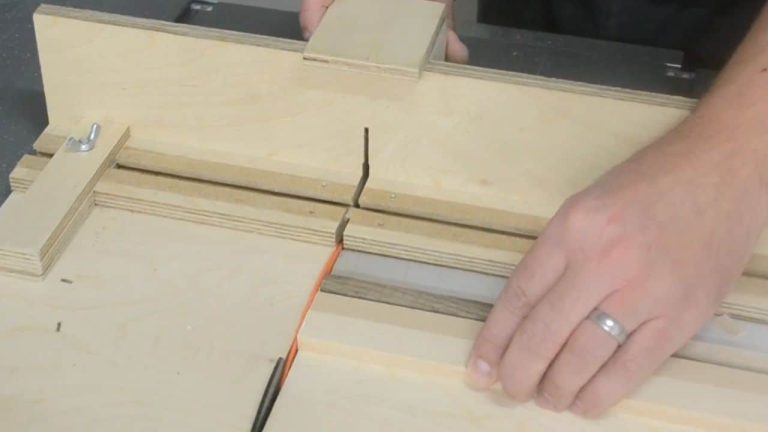

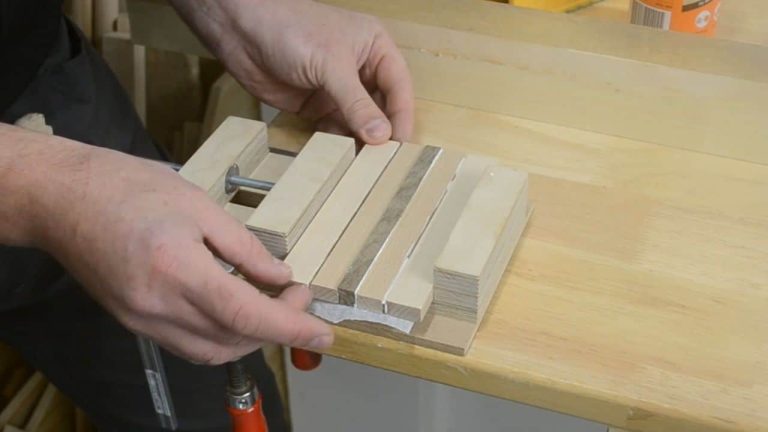

I started by cutting a few strips of beech and walnut on the table saw — keeping the width consistent. Then I trimmed them to final size using my crosscut sled. Once I had enough strips, I mixed them into a nice alternating pattern and glued them together using my drill press vise as a clamp.

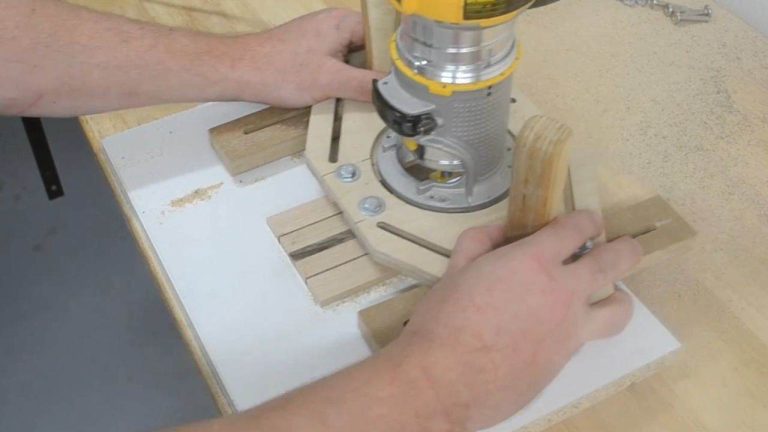

After the glue dried, I used my multipurpose router jig to flatten the block down to 6mm thickness. That became the visible top layer. To reinforce it, I glued it onto a 6.5mm piece of Baltic birch plywood. Together, they form a sturdy, stylish top for the sanding block — kind of like how you’d build a mini cutting board.

Step 2: Making the Bottom

The base is made from two pieces of Baltic birch plywood glued together — one 12mm thick, the other 6.5mm thick. Once glued, they match the size of the top piece perfectly. I trimmed the edges flush so the whole block stays square and aligned when assembled.

Having a double-layered base gives it strength and helps the bolts seat well later when tightening the sanding paper.

Step 3: Drilling Holes and Inserting Rivet Nuts

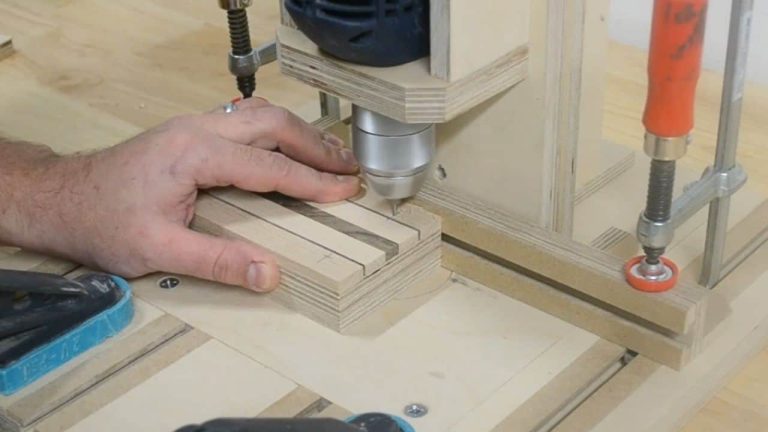

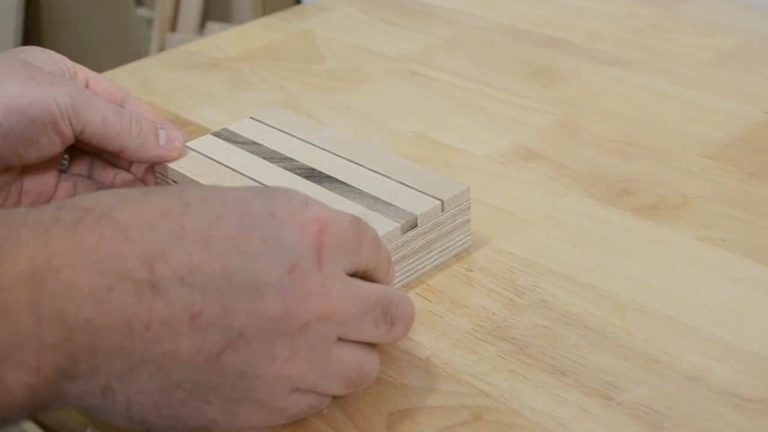

To make sure everything lines up perfectly, I temporarily attach the top and bottom pieces using double-sided tape. I mark the bolt positions on the top piece with a marking gauge, then drill straight through both layers using my drill press stand for clean, accurate holes.

Next, I separate the pieces and insert M6 rivet nuts into the bottom piece, adding a little Gorilla glue to lock them in. Make sure the nuts are seated flush with the surface — you don’t want them interfering with the sanding paper. Once the glue sets, I bolt the pieces together to test the fit.

Step 4: Routing Handles and Finishing the Block

Now it’s time to make this sanding block feel great in your hand. With both pieces still bolted together, I use my benchtop router table and a ball-nose router bit to cut finger slots on both sides. These grips make a huge difference in control and comfort during sanding.

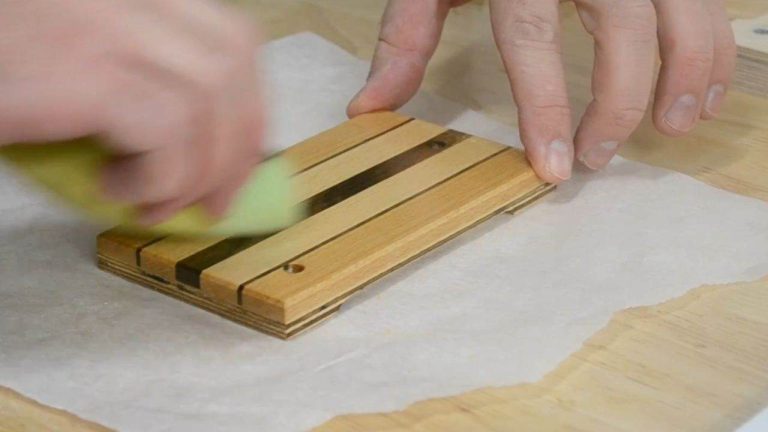

Then comes the finishing. I sand the entire block using progressive grits, rounding over all sharp edges—especially on the top piece. A quick coat of wood oil really brings out the beech and walnut pattern. Lastly, I cut a strip of sandpaper to size, slide it between the layers, and secure it with M6 bolts. Done!

Find This Blog Post Useful?

Join my newsletter to receive the latest news, tutorials, and project plans sent directly to your inbox!

How to Use the Sanding Block

Using this sanding block is straightforward. Just grip it by the routed handles, and you’re ready to smooth out board edges, corners, or flat surfaces. I reach for it all the time when working on cutting boards — especially after trimming or rounding over the edges.

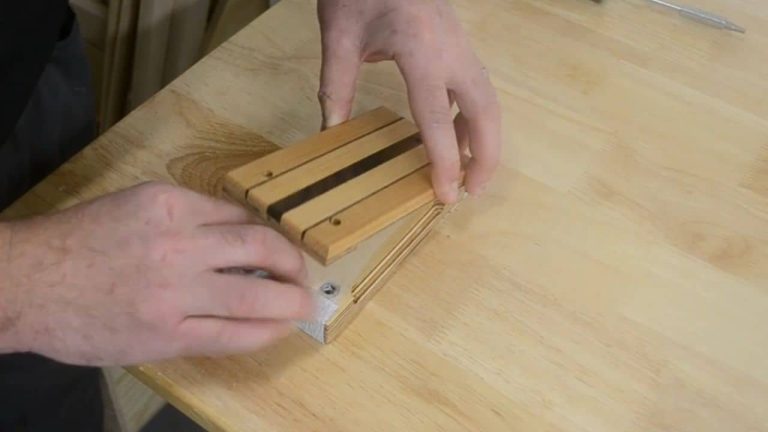

Since the sandpaper is clamped between the two layers, swapping it out is fast. Just unscrew the bolts, insert a fresh strip, and tighten it back down. The secure grip means no slipping, and the pressure is distributed evenly across the surface.

🔧 Optional Upgrade
You can always tune yours further — I’ve seen people add cork or foam underneath the sandpaper for even better flexibility. If you want to take it to the next level, give it a try.

Wrap-Up

I’ve used this sanding block on countless projects, and I’m really happy with how it turned out — not just in terms of function, but also how it feels and looks. It’s solid, easy to hold, and swapping sandpaper takes just a few seconds. It works especially well for cleaning up the edges of cutting boards, and honestly, I reach for it more than I expected.

Sure, you can opt for a simple store-bought version or create a basic one from scrap. But I wanted something that feels good in the hand, looks decent, and works well every time I pick it up. It’s still just a sanding block, but building it this way makes it a lot more enjoyable to use.

👉 Want to build your own? You can check out my Best Woodworking Jigs for Cutting Boards post to see how this sanding block fits into the workflow, and if you want the more complete version of the builds, you can also browse my woodworking plans page.

FAQ – DIY Sanding Block

What is the best wood for making a sanding block?

Hardwoods like beech, walnut, and oak are great choices. They’re durable, comfortable to hold, and don’t wear down quickly. Plywood or MDF can also be used for flat base layers.

Can I build a sanding block without bolts or inserts?

Yes. A basic sanding block can be made with just a flat piece of wood and adhesive or clamps to hold the sandpaper. But bolts and inserts offer a more secure and reusable solution.

How do you attach sandpaper to a homemade sanding block?

In this design, the sandpaper is clamped between the top and bottom pieces using bolts and nut inserts. This keeps the paper tight and makes replacement easy.

Is this sanding block good for smoothing cutting boards?

Absolutely. I use mine mostly for cleaning up the edges of cutting boards and prepping surfaces between finishing coats.

Jigs I used for this project

This post DIY Sanding Block: How to Build One (With Free Plans) first appeared on AllFlavor Workshop and is written by About the author, Lukas

Essential Router Jigs for Cabinet Making (And How to Use Them)

About the author, Lukas — Thu, 18 Sep 2025 07:00:00 +0000

AllFlavor Workshop

Essential Router Jigs for Cabinet Making (And How to Use Them)

Cabinet making is one of those woodworking areas where precision really matters — and routers are some of the best tools for getting clean, accurate cuts. Whether I’m adding shelves, routing dados, or fitting face frames, I always turn to a few reliable jigs to make things easier and more repeatable.

Over the years, I’ve built quite a few router jigs in my workshop — some simple, others more complex — but a handful have stuck with me. I use them all the time when building cabinets, drawers, or shelving units. Router jigs are a great way to get more precise results without taking up a lot of space — perfect for any workshop setup, especially if you’re working in a smaller garage like I do.

In this post, I’m walking through the router jigs I use the most for cabinet projects, what they’re good for, and how you can build them too. All of them were built with space and practicality in mind — I wanted tools that are easy to set up, give repeatable results, and don’t take up a ton of room.

📌 I’ll link to the downloadable plans throughout the post if you want to build your own versions — they include measurements, a list of materials and tools, a step-by-step video guide, and more.

Why Use Router Jigs for Cabinet Making?
Essential Router Jigs for Cabinet Making
1. Adjustable Router Dado Jig
2. Shelf Pin Jig
3. Router Mortising Jig
4. Router Circle Jig
5. Router Template Jig
6. Benchtop Router Table
7. Router Table Box Joint Jig
8. Router Table Spline Jig
Comparison Table: Router Jigs for Cabinet Making
Final Thoughts
FAQ: Router Jigs for Cabinet Making

Why Use Router Jigs for Cabinet Making?

When you’re building cabinets — whether it’s full kitchen units, shop storage, or utility drawers — accuracy matters. You need clean dados, perfectly aligned shelf pins, tight-fitting mortises, and straight cuts. A router alone can do a lot, but when paired with the right jigs, it becomes a whole different tool.

Router jigs let you:

Speed up repetitive cuts – Like shelf pins or dados for side panels.
Keep things aligned – Essential when you’re joining multiple parts together.
Avoid measuring errors – The jig sets the path; you just follow it.
Work cleaner and safer – Especially when routing small parts or delicate edges.

Most of the cabinet jigs I use are easy to build and work with both a plunge router and a compact handheld router. No matter the material, the right jig helps keep things accurate and consistent every time.

That said, not all router jigs are created equal. Below are the ones I rely on the most when building cabinets — from dadoes and rabbets to shelf pin holes and perfect mortises.

PIN THIS TO PINTEREST

📌 Save THIS PIN to your Board on Pinterest!

Essential Router Jigs for Cabinet Making

1. Adjustable Router Dado Jig

For precise dadoes and rabbets every time

This is one of my go-to router jigs when building cabinets. Dados and rabbets are the backbone of strong cabinet construction — they help align pieces, add strength, and create a clean look. And this jig makes cutting them quick, accurate, and repeatable.

What sets this jig apart is its adjustability. You can dial it in to match the exact width of your material, lock it in place, and cut a snug-fitting dado in a single pass. No messing around with multiple test cuts or fine-tuning router fences. It’s especially useful when working with plywood, which often varies slightly in thickness.

🛠 My Setup:
I built this jig to work with a 6mm straight router bit and a plunge router. The base is made from thin MDF to maximize plunge depth. The guide rails are aluminum, and the adjustable mechanism is locked in place with wooden knobs. It’s compact, quick to set up, and gives great results every time.

📌 You can check out the full build and plans here: Router Dado Jig

2. Shelf Pin Jig

For evenly spaced adjustable shelves

When building cabinets or bookcases, shelf pins let you add adjustable shelves without complicating the design. But getting those holes evenly spaced and perfectly aligned on both sides of the panel? That’s where a shelf pin jig makes all the difference.

This jig helps you drill clean, consistent holes for shelf pins using a plunge router and a guide bushing. It ensures that every shelf sits level and you can repeat the same layout across multiple panels. Great for kitchen cabinets, closet storage, or shop furniture.

🛠 My Setup:
My shelf pin jig is made from MDF/ Plywood with evenly spaced holes that guide a 6mm router bit using a bushing. I use it with my plunge router, clamped to the cabinet side panels. You can scale the jig to fit your most common cabinet sizes or add stop blocks for consistent hole spacing.

Note: I don’t currently have plans for this jig — but if there’s interest, I might make some soon.

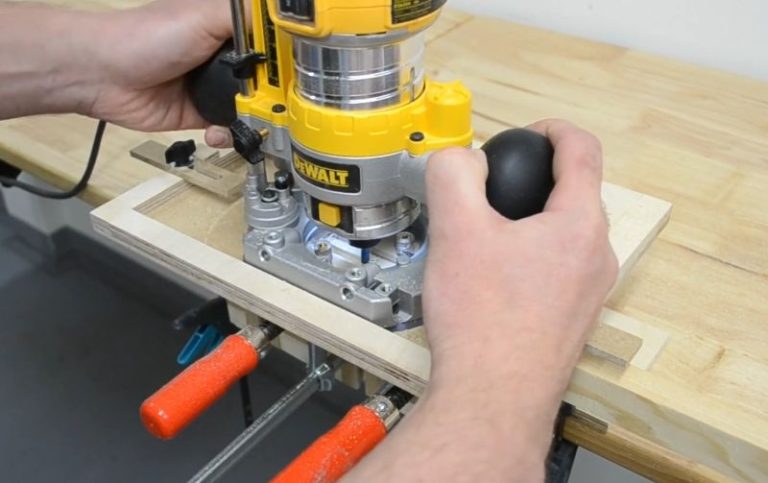

3. Router Mortising Jig

For strong, clean mortise joints in frames and panels

When it comes to cabinet doors, face frames, or structural panels, mortise-and-tenon joinery is one of the strongest options you can use — and this jig helps you get perfect mortises every time. It holds the workpiece both vertically and horizontally and allows you to plunge straight down into the exact position you need.

The jig is adjustable for different workpiece sizes and mortise lengths, so it works for everything from small drawer fronts to full cabinet frames. Once set, you can repeat the cut across multiple parts quickly and accurately.

🛠 My Setup:
This jig mounts to my workbench and holds the workpiece securely against an adjustable fence. The plunge router rides on a top-mounted platform between two guide rails and can move left to right. Two wooden knobs on the back adjust the front-to-back travel of the router table, and side stops set the mortise length. I used Baltic birch plywood, MDF, and HDF in the build, with wooden knobs and wing nuts for adjustments.

📌 You can check out the full build and plans here: Router Mortising Jig

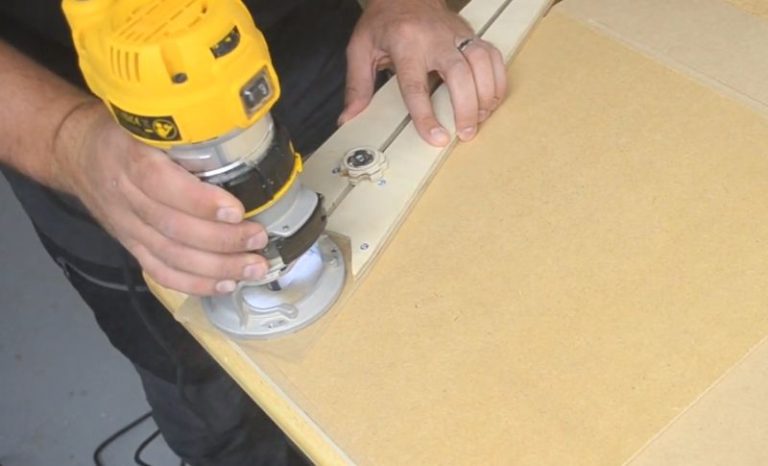

4. Router Circle Jig

For cutting perfect circles, round tabletops, and arcs

Whether you’re making lazy Susans, speaker cutouts, or round cabinet tops, a circle jig makes the job smooth and accurate. It lets you cut clean, consistent circles with a handheld router and a simple pivot arm.

This jig is quite simple, but very effective. You fix the center point, set the radius, and guide the router around in a perfect arc. I’ve used mine to cut circles as small as 3 cm and as large as 80 cm — just depends on the length of the arm.

🛠 My Setup:
I built this for a handheld router (my DeWalt D26200). The arm is mounted to a 6mm plywood base, which allows full plunge depth of the bit. You can modify the jig for other router brands by drilling the appropriate mounting holes. It’s easy to scale up or down depending on your needs.

📌 You can check out the full build and plans here: Router Circle Jig

5. Router Template Jig

For inlays, hardware recesses, and precise cutouts

If you need repeatable shapes, tight-fitting inlays, or clean hardware cutouts — this is the jig for the job. I use it for routing everything from handle recesses and hinge cutouts to decorative inlay patterns. It saves tons of setup time and gives a pro-level finish.

What makes it effective is its adjustability. The jig has four sliding arms that create a custom-sized template opening. You can use all four arms for rectangles or just two or three to shape trapezoids or angled recesses.

🛠 My Setup:
This version is built for a 6mm straight bit and a handheld router. The base is thin MDF for better plunge depth, and the adjustable arms are made from plywood with integrated T-tracks. Once the shape is dialed in, I lock the arms with wing nuts and clamp the jig to the workpiece. The router follows the inside of the template for a clean, repeatable result every time.

🔗 Step-by-step guide and Plans available if you want to build one: Router Template Jig

6. Benchtop Router Table

Why it’s perfect for precise and repeatable cabinet joinery

A router table is one of those tools that just makes joinery easier. It gives you solid support, better control over your cuts, and it’s great for getting repeatable results — especially when you’re working on joints that need to line up perfectly every time.

In my workshop, I built a compact portable router table that serves as a base for multiple jig add-ons. That modular setup lets me switch between a box joint jig, spline jig, and tenon jig (and more) depending on the project — without building a new jig from scratch every time.

🔗 Step-by-step guide and Plans available if you want to build one: Benchtop Router Table

Next up are two of my favorite router table jigs for cabinet joinery — the Box Joint Jig and the Spline Jig. Let’s start with the box joints.

📌 Want to learn how modular jig systems work? Check out How to Build Modular Woodworking Jigs for Versatility to see how a single base can serve multiple purposes.

7. Router Table Box Joint Jig

Perfect for making strong, repeatable joints in drawers and cabinet boxes

This jig is my go-to for making clean, tight box joints. I mainly use it when building drawers or open cabinet boxes — anywhere I need a strong mechanical joint that also looks good. It’s one of those jigs that, once it’s dialed in, saves a lot of time and gives consistent results.

The jig is designed to fit my router table setup. It locks into position on the table and holds the workpiece vertically. The cutting position is guided by a pin that matches the width of the bit, so the spacing stays accurate the whole way through. I’m using a 6mm bit for this one, but you can easily modify it for other sizes.

What I like most is that it’s reliable. You clamp the piece, run the cut, shift over, and repeat. And because it’s mounted to the table, everything stays square and stable.

📌 You can check out the full build and the plans here: Router Table Box Joint Jig

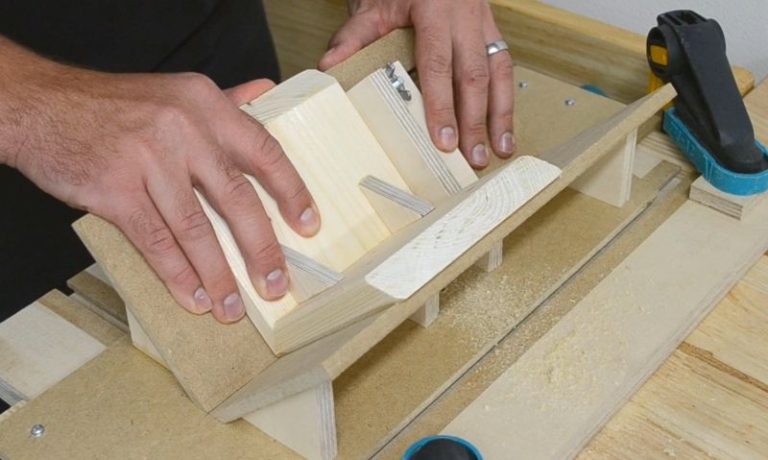

8. Router Table Spline Jig

Adds strength and a clean look to miters in cabinet frames and boxes

I use this jig mostly when I’m reinforcing mitered corners — for example, in cabinet frames, decorative boxes, or even angled drawer fronts. A spline not only makes the joint stronger, it also adds a nice visual detail that can stand out if you use contrasting wood.

The jig is built to slide over my router table and lock around the tabletop. It holds the workpiece at a 45° angle, letting the router bit cut clean spline slots right through the joint. The key here is keeping everything aligned — and this jig makes that easy.

Like the box joint jig, it’s designed for a 6mm bit and built to match the dimensions of my router table. You can tweak it for your setup with different fences or bit sizes.

📌 Full build and plans here: Router Table Spline Jig

Comparison Table: Router Jigs for Cabinet Making

Router jigs can do a lot of the heavy lifting in cabinet making — from joinery to shaping to shelf construction. Below is a quick comparison to help you pick the right one for your build. Most of these jigs have plans available for download if you want to build them yourself.

Jig	Best For	Router Type	Adjustable
Adjustable Dado Jig	Cutting dados and rabbets	Plunge router	✅ Yes
Shelf Pin Jig	Drilling evenly spaced shelf holes	Handheld or plunge router	✅ Yes
Adjustable Template Guide	Cutouts, inlays, corners	Handheld router	✅ Yes
Router Mortising Jig	Horizontal and vertical mortises	Plunge router	✅ Yes
Router Circle Jig	Round cabinet panels, bases	Handheld router	✅ Yes
Router Table	General joinery and shaping	Table-mounted router with fence	⚠️ Base and fence
Box Joint Jig (for router table)	Finger joints in cabinets/boxes	Router table addon	✅ Yes
Spline Jig (for router table)	Strengthening miter joints	Router table addon	✅ Yes

Final Thoughts

A good set of router jigs can seriously level up your cabinet making. I use these jigs all the time — not just because they save time, but because they make the process more accurate and repeatable. That’s important whether you’re building a one-off cabinet or a full kitchen setup.

Routers are incredibly versatile, and with the right jigs, you can get pro-level results in a small workshop. You don’t need a big shop to get precise, repeatable cuts — just the right tools and a bit of setup. Modular jig setups let you do more with less space, which is exactly what I go for in my builds.

If you want to build any of these jigs, plans are available with step-by-step instructions, cutting lists, and both metric and imperial measurements.
🔗 Download woodworking jig plans

FAQ: Cabinet Jigs

What router do I need for cabinet making?

You can get great results with either a plunge router or a compact handheld router. For jigs like the mortising jig or dado jig, I use the DeWalt D26200. If you’re working with a router table, make sure your router can be mounted securely to a plate or base.

Can I build these jigs with basic tools?

Yes — most of these jigs can be built using a table saw, drill, and a router. Some jigs benefit from a bit more precision, but if you take your time and follow the plans, you’ll get there even without a full workshop.

Are these router jigs beginner-friendly?

Definitely. A few of them, like the dado jig and circle jig, are perfect starter projects. They’re simple to build and give you a big return in functionality. Others, like the mortising jig or box joint jig, require more setup but are very doable with guidance.

What materials do you recommend for building these jigs?

I mostly use Baltic birch plywood, MDF, and HDF. They’re flat, stable, and easy to work with. You want your jigs to be accurate and consistent — materials like construction-grade plywood or softwood boards often warp and throw things off.

Do I need all of these jigs for cabinet making?

Not at all. Start with one or two based on what you’re building. For example, if you’re adding adjustable shelves, go for the shelf pin jig. Building drawers? You’ll love the box joint jig. Once you see what you use the most, you can always add more later.

This post Essential Router Jigs for Cabinet Making (And How to Use Them) first appeared on AllFlavor Workshop and is written by About the author, Lukas

Top Mistakes to Avoid When Building Woodworking Jigs

About the author, Lukas — Thu, 04 Sep 2025 07:00:00 +0000

AllFlavor Workshop

Top Mistakes to Avoid When Building Woodworking Jigs

If you’ve ever built a woodworking jig that didn’t quite work out, you’re not alone. I’ve built dozens of jigs over the years — some turned into workshop staples, others got scrapped or rebuilt within days. It’s all part of the process.

Jigs are meant to make your work faster, safer, and more accurate. But if the design is off, the setup takes too long, or it doesn’t hold your workpiece right, it ends up doing the opposite. Most jig issues come down to a few repeatable mistakes — and the good news is, they’re easy to avoid once you know what to look for.

In this post, I’ll walk you through the most common woodworking jig mistakes I’ve seen (and made), and how to fix or avoid them. Whether you’re building a router jig, crosscut sled, circle guide, or clamp, these tips will help you get better results — and enjoy using your jigs more.

Most of the jigs I use today have been refined over time — and if you want to skip the trial-and-error, many of them are available as downloadable plans.

Common Mistakes When Building Jigs
Comparison Table: Jig Building Mistakes
How to Test and Tune Your Jig
Final Thoughts
FAQ

📌 Save THIS PIN to your Board on Pinterest!

Common Mistakes When Building Jigs

1. Not Having a Design or Sketch

One of the biggest mistakes — even experienced woodworkers make this — is jumping straight into the build without a plan. It’s easy to get excited about an idea and start cutting, but without even a rough sketch, it’s just guesswork. You might get halfway through the build and realize something doesn’t fit, parts interfere with each other, or the jig just doesn’t function as intended.

I’ve been there. And I’ve scrapped jigs that were nearly finished because I didn’t stop to think it through on paper first.

Even a hand-drawn sketch helps. A quick outline of how the jig will work, what parts need to move, where the workpiece goes — it all makes a difference. If you want to go further, a basic CAD drawing or SketchUp model helps you catch potential issues before you start cutting wood.

The more detailed your design, the easier the build. You’ll know how everything fits together, how the jig will function, and most importantly — why you’re building it that way.

Building with a purpose saves time, materials, and frustration.

2. Accuracy & Layout Mistakes

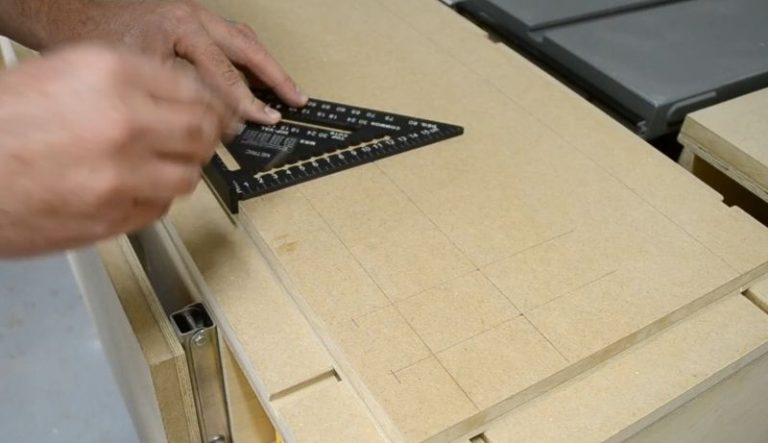

1. Eyeballing Measurements or Layouts

It’s tempting to mark by eye when the cuts seem “close enough,” especially on simple jigs. But even a 1–2 mm error can throw off repeatability or ruin precision joinery.

✅ What to do instead:
Always use a marking gauge, square, or ruler guide when laying out cuts and holes. I often use my ruler marking gauge for this — it’s fast and consistent.

2. Misaligned Guide Rails or Fences

If your jig’s guide rail or fence isn’t square or parallel, every cut it guides will be slightly off. This is especially frustrating on crosscut sleds, dado jigs, or circle jigs.

✅ What to do instead:
Double-check alignment before assembly using a combination square or test cuts. A good rule: if the test piece feels “off,” the jig probably is too.

3. Material & Hardware Mistakes

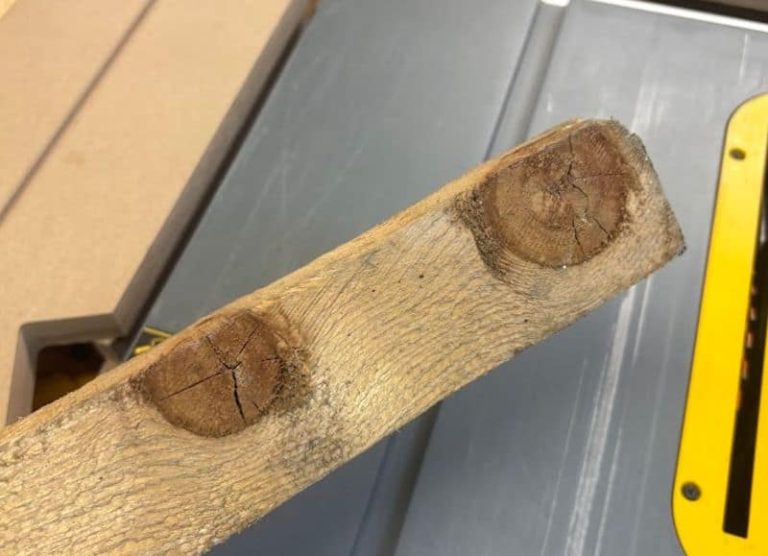

1. Using the Wrong Type of Wood

It might be tempting to grab whatever scrap wood you have lying around, but not all materials are good for jigs. Softwoods like pine dent easily and can throw off accuracy. Cheap plywood often has voids, warps, or weak glue layers that won’t hold up.

✅ What to do instead:
Use stable materials like Baltic birch plywood, MDF, or HDF — they’re flat, strong, and predictable. I use Baltic birch for anything structural and MDF for baseplates or sliding parts.

🔗 Want more detail? Check out my guide on the best materials for woodworking jigs — I break down what to use (and what to avoid) based on years of hands-on use.

2. Using Uneven or Warped Materials

Even if you pick the right type of wood, if the piece is warped or cupped, your jig won’t stay flat — and your results will suffer. Warped parts twist over time, especially with exposure to humidity or pressure from clamping.

✅ What to do instead:
Always start with flat, straight boards. Check your material before cutting and avoid offcuts that have been sitting around under tension.

3. Skipping Quality Fasteners or Hardware

Loose bolts, mismatched screws, or low-quality knobs can turn even a well-designed jig into something unreliable. Poor hardware choices often cause slop or wear out quickly.

✅ What to do instead:
Use proper T-nuts, threaded inserts, and wooden or plastic knobs where adjustments are needed. They hold better, last longer, and give you more control.

4. Adjustability & Fit Mistakes

1. Making a Fixed Jig When Adjustability Would Help

Sometimes it makes sense to keep a jig simple and fixed. But for jigs you’ll use repeatedly — like dado jigs, circle guides, or template jigs — being able to adjust dimensions can save a ton of time and material later on.

✅ What to do instead:
When possible, build in T-tracks, sliding fences, or even just slots with knobs. Adjustable parts help you reuse one jig for multiple projects, material sizes, or bit widths.

2. Misaligning Moving Parts or Pivot Points

If parts of your jig are meant to slide, pivot, or clamp in different positions, they need to be aligned correctly — or the whole jig won’t work right. Misaligned slots or asymmetrical movement often shows up in circle jigs, mortising jigs, or router sleds.

✅ What to do instead:
Take your time during layout and test movement before you lock anything down. I often mark the travel range first, then add stoppers or knobs last.

3. Forgetting to Account for Bit or Blade Clearance

Even well-built jigs can fail if the tool doesn’t reach the workpiece properly. This often happens when the router base is too thick, or the workpiece is too far from the bit path. It’s easy to overlook — until you’re halfway through a cut and the depth just isn’t there.

✅ What to do instead:
Double-check your design for tool clearance — especially plunge depth or blade exposure. I usually mock this up with the bit installed before final assembly, particularly on jigs made with MDF or plywood baseplates.

5. Clamping & Safety Mistakes

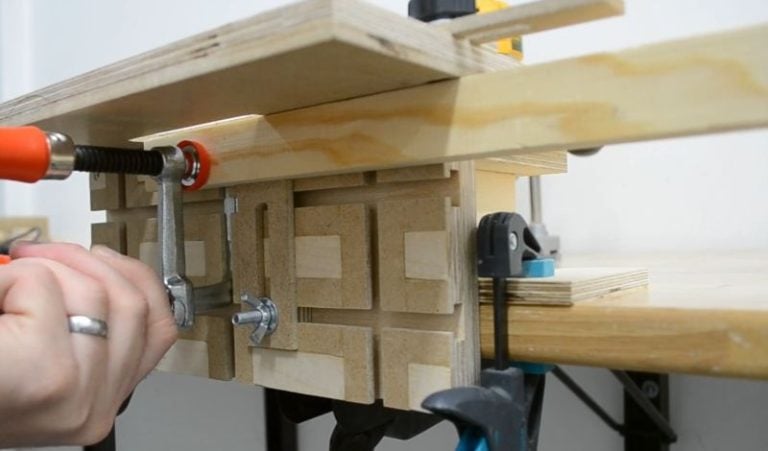

1. Not Building in a Way to Secure the Jig

If the jig slides, lifts, or shifts during a cut, it’s not just annoying — it can be dangerous. I’ve seen jigs slip mid-cut because they weren’t clamped down or didn’t have a built-in way to hold position.

✅ What to do instead:
Design your jigs with flat bases for clamping, or add notches or dedicated clamp points where you need them. If a jig is meant to stay in place during use, treat secure hold-downs as a design feature — not an afterthought.

2. Forgetting About Workpiece Support

Sometimes the jig is solid, but the workpiece itself wobbles or rocks because it’s not supported correctly. This leads to uneven cuts, kickback, or even damaging the jig.

✅ What to do instead:
Add fences, stops, or vertical support pieces to help guide or hold your workpiece. In some cases, a simple backer board behind the cut area prevents tear-out and gives you a more stable result.

3. Ignoring Safe Hand Placement and Bit/Cut Path

It’s easy to focus so much on the jig design that you forget where your hands will actually be during use. If a clamp or knob is too close to a spinning bit or blade, you’re creating a risk.

✅ What to do instead:
Think through your cut before finalizing the build. Where are your hands? Is there clearance? Is the bit fully guarded? Good jigs not only improve accuracy — they also keep your fingers safe.

6. Overcomplicating Simple Jigs

1. Adding Too Many Features You Don’t Need

It’s easy to fall into the trap of over-engineering a jig — adding stops, knobs, sliding parts, or multiple modes of use, “just in case.” But all that complexity can make the jig harder to build, slower to set up, and more frustrating to use.

✅ What to do instead:
Start with a clear purpose: what exactly do I need this jig to do? Then design around that. You can always upgrade later. Some of my most-used jigs are dead simple — they just do one thing really well.

2. Trying to Make One Jig Do Too Much

Multi-purpose jigs sound great, but in practice, they often do nothing well. A jig that’s meant to be a router sled and a dado guide, and a tapering jig usually ends up being bulky, awkward, or inconsistent.

✅ What to do instead:
Build for one task, then repeat or modify the design if you need a variation. That way, each jig is fast, predictable, and easy to repair or replace if needed.

Summary Table: Common Jig Building Mistakes and Fixes

Mistake Category	Common Mistake	What to Do Instead
Planning & Design	No sketch or layout before building	Start with a drawing or CAD plan to think through the design
Accuracy & Layout	Eyeballing measurements	Use squares, gauges, and rulers for precise layout
	Misaligned guide rails or fences	Align with test cuts or measuring tools before final assembly
Material & Hardware	Using softwood or cheap plywood	Use Baltic birch, MDF, or HDF for flat, stable parts
	Using warped or uneven pieces	Start with flat, high-quality boards
	Low-quality knobs or fasteners	Use proper inserts, T-nuts, and hardware
Adjustability & Fit	Building jigs with no adjustability	Add sliding parts, slots, or T-tracks where needed
	Misaligned moving or pivoting parts	Pre-test movement and measure evenly before tightening
	Forgetting bit/blade clearance	Check plunge depth or tool reach before finalizing the build
Clamping & Safety	No built-in way to secure the jig	Add clamp-friendly surfaces or fixed hold-downs
	Workpiece is unstable or unsupported	Add fences, vertical supports, or backer boards
	Unsafe hand positions or tool paths	Think through the cut and hand placement in advance
Overengineering	Adding too many unnecessary features	Build for the exact function; keep it simple
	Trying to make one jig do too many jobs	Make task-specific jigs that are repeatable and efficient

How to Test and Tune Your Jig

Even with a solid design and careful build, most jigs still need a little fine-tuning before they’re ready for real work. Here’s how I test mine and dial them in.

1. Start With Scrap

Always run a few test cuts on scrap wood — ideally the same thickness and material as your actual workpiece. This shows you if the jig is cutting square, if the bit is centered, or if there’s unwanted movement.

I rarely go straight to a project without doing a few dry runs first — scrap tells you everything.

2. Check for Squareness and Symmetry

Whether it’s a router jig, clamping jig, or crosscut sled, use a square or measuring tape to check key alignments:

Are fences 90° to the base?
Are slots centered?
Are distances consistent on both sides?

Small alignment errors add up fast, especially on joinery jigs.

3. Adjust Travel and Stops

If the jig includes sliding parts, stops, or pivot arms, make sure:

There’s no slop or wiggle
Stops land exactly where they should
Movement is smooth, but tight enough to hold position

Even simple adjustments — like repositioning a wing nut or sanding a tight edge — can make a big difference.

4. Watch How the Tool Moves

Test how your router, saw, or drill moves within the jig:

Does it glide cleanly across the guide?
Can it reach the cut area comfortably?
Are any knobs, clamps, or handles in the way?

Make sure the motion is smooth and controlled — you shouldn’t be fighting the jig to get the result.

5. Keep Notes for Next Time

If a jig works really well (or doesn’t), I often jot down a few notes directly on the jig itself — like “great for 12 mm plywood” or “bit center = 15 mm from edge.” That way, the next time I pull it out, I’m ready to go.

💡 Tip: Most of the jigs I build and test go into full downloadable plans — with cutting diagrams, materials, and both metric and imperial measurements.
👉 If you’re looking for designs that are easy to build and get right the first time, check out the plans section here.

Final Thoughts

Building your own jigs takes time, and sure — you’ll make a few mistakes along the way. But that’s part of the process. Every jig I’ve built taught me something new, and the more I use them, the more I refine how I build the next one.

A good jig can save you hours, improve your results, and make repeatable work actually enjoyable. And honestly? I just like building them. They’re one of the most satisfying parts of woodworking — functional, clever, and custom-made for how you work.

If you’re just getting started, keep it simple. Sketch your design, choose solid materials, and think through how the jig will actually be used. And when you’re ready to go further, check out the downloadable plans — they’re all jigs I’ve built and tested in my own small workshop.

Routers, saws, clamps — they all benefit from better jigs. And once you start building your own, it’s hard to stop.

Frequently Asked Questions

What materials should I use to build woodworking jigs?

I usually go with Baltic birch plywood, MDF, or HDF for jig bases and structures — they’re flat, stable, and easy to machine. Avoid softwood or warped pieces — they’ll introduce errors.

Do I need to use CAD software to design jigs?

Not at all. A simple pencil sketch on paper is often enough to help you work out dimensions, layout, and functionality. But if you like using SketchUp or Fusion 360, they’re great for visualizing complex builds.

How do I test a jig before using it on a real project?

Run a few passes on scrap wood first. Check for squareness, fit, tool movement, and whether stops or adjustable parts hold properly. Small tweaks at this stage make a big difference.

Can I make jigs that work for both hand-held and table-mounted tools?

Yes — many jigs (like dado jigs or template guides) can be designed to work with both plunge routers and hand-held tools. Just make sure to design around the bit depth and base size. When I build jigs for my router table, I add stops and fences that match my table layout.

What are some essential jigs I should build first?

If you’re new to jig building, I recommend starting with:

A crosscut sled for your table saw
A router dado jig
A circle cutting jig
A simple clamping jig
These cover 90% of my everyday workshop tasks.

This post Top Mistakes to Avoid When Building Woodworking Jigs first appeared on AllFlavor Workshop and is written by About the author, Lukas

woodworking jigs – AllFlavor Workshop

DIY Mobile Table Saw Workbench (Step by Step with Pictures)

Video: Watch the Build

Table of Contents

Table Saw Workbench Plans

Materials Needed

Why Build a Mobile Table Saw Workbench?

Let’s Start Building!

How to Make a Mobile Table Saw Workbench

Step 1: Build the Base Frame

Step 2: Build the Upper Cabinet Level

Step 3: Build the Tabletop and Outfeed Table

Step 4: Final Assembly and Finishing Touches

Wrap Up

Frequently Asked Questions

Can I build a mobile table saw workbench for a saw other than the DeWalt 7491?

Why use MDF for the top instead of plywood?

Do I really need an outfeed table on a mobile table saw workbench?

What are the main benefits of a mobile table saw workbench?

Can I add more features to this table saw workbench later?

DIY Wood Lathe: How to Make a Drill Lathe

Video: DIY Wood Lathe / Drill Lathe Build

Table of Contents

Plans: DIY Wood Lathe

Materials and Tools

What Can You Make with a DIY Wood Lathe?

Let’s Start Building!

How to Make a DIY Wood Lathe

Step 1: Build the Base

Step 2: Build the Spindle

Step 3: Build the Drill Holder

Step 4: Build the Tool Rest

Step 5: Add the Tailstock

Wrap-Up

Frequently Asked Questions

What can you make with a DIY wood lathe?

Can I use any drill for this homemade wood lathe?

Is this DIY drill lathe accurate enough for real woodworking?

What wood is this DIY wood lathe made from?

Is this a replacement for a full-size wood lathe?

DIY Hexagon Jig for Table Saw (Make Perfect Hexagons Easily)

Video – How to Make a Hexagon Jig for Table Saw

Table of Contents

Table Saw Hexagon Jig Plans

Materials and Tools

What Is a Hexagon Jig and Why Build One?

Let's start building!

How To Make a Hexagon Jig for Table Saw

Step 1: Prepare the Wood for the Hexagon Fence

Step 2: Cut Dados and Assemble the T-Track Fence

Step 3: Mount the Fence to the Table Saw Sled

Step 4: Add the Stop and Hold-Down Clamps

How to Cut a Hexagon with a Hexagon Jig

Wrap-Up: A Simple, Accurate, and Reusable Add-On

FAQs

What angle do you need to cut a hexagon on the table saw?

Do I need a table saw sled for this hexagon jig?

What materials should I use for the jig?

How big of a hexagon can I cut with this jig?

How do I keep the cuts accurate and repeatable?

Is the system reusable with other jigs?

DIY Juice Groove Jig: Cut Clean Juice Grooves Every Time

How to Make a Juice Groove Jig Video

Table of Contents

Juice Groove Jig Plans

Tools and Materials

Let's start building!

How to Make a Juice Groove Jig

Step 1: Cut the Base to Size

Step 2: Add T-Tracks to the Base

Step 3: Build the Adjustable Side Fences

Step 4: Assemble the Juice Groove Jig

Find This Blog Post Useful?

How to Use the Juice Groove Jig

Juice Groove Routing Tips

Wrap-Up

FAQ – Juice Groove Jig

What router bit do I need to cut a juice groove?

Can I use this jig for different cutting board sizes?

How do I avoid burning the edges while routing?
